CB LED Linear Trunking System , 45Watt Warehouse Pendant Light

Shenzhen Coreshine Optoelectronics Co.,Ltd
Contact Now
    Buy cheap CB LED Linear Trunking System , 45Watt Warehouse Pendant Light from wholesalers

    Buy cheap CB LED Linear Trunking System , 45Watt Warehouse Pendant Light from wholesalers
    • Buy cheap CB LED Linear Trunking System , 45Watt Warehouse Pendant Light from wholesalers
    • Buy cheap CB LED Linear Trunking System , 45Watt Warehouse Pendant Light from wholesalers
    • Buy cheap CB LED Linear Trunking System , 45Watt Warehouse Pendant Light from wholesalers

    CB LED Linear Trunking System , 45Watt Warehouse Pendant Light

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CFL-1545-X1X2-X3WH
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

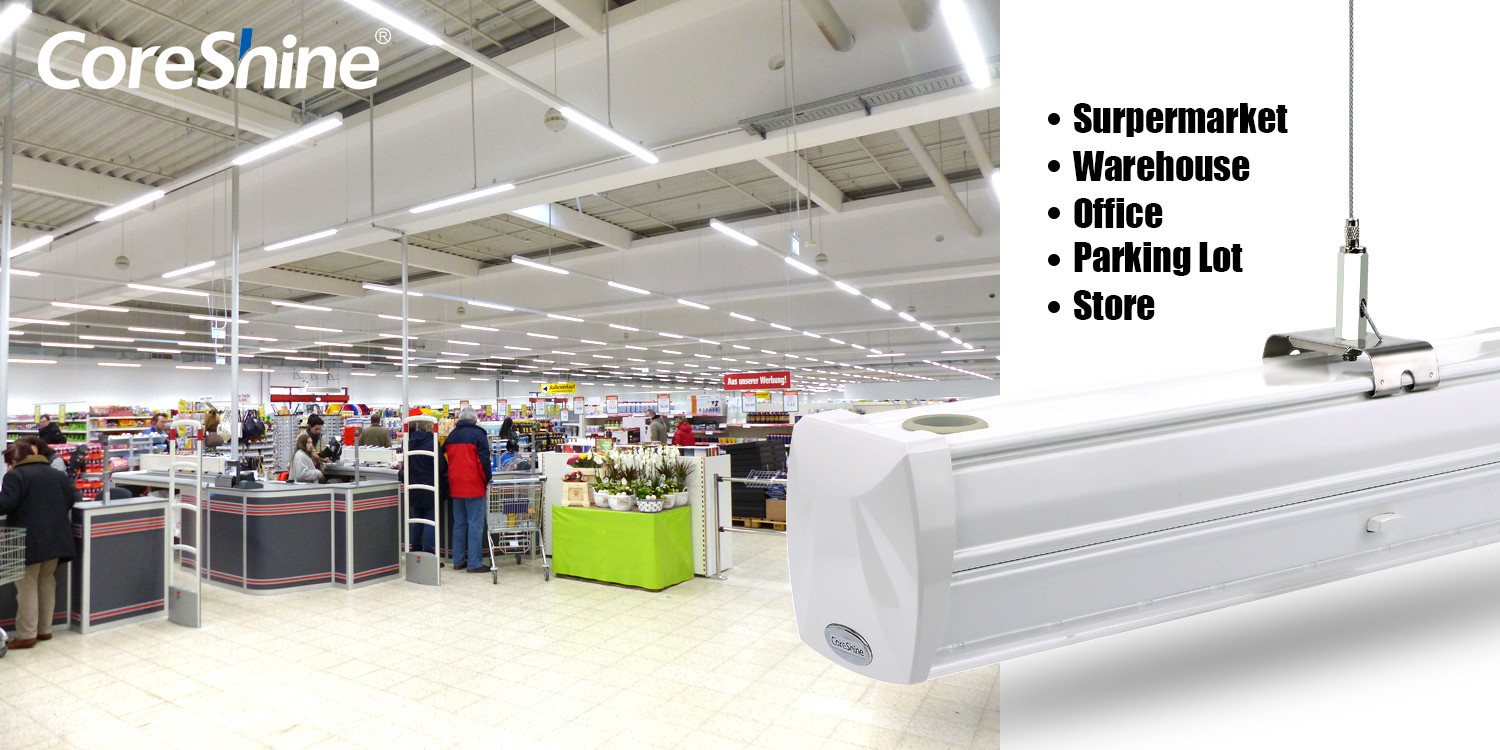

    CB LED Linear Trunking System , 45Watt Warehouse Pendant Light

    Smart Control Linear Trunking System | Led Warehouse Lighting with Motion Sensor


    Surface Mounted Factory Led Linear Warehouse Lighting System 1500mm 45w

    LED linear light is exclusively designed for designers and architects with imagination and personal style.LED linear light adopt premium aluminum profile, different dimension, and size, easy to install.2 types of installations method: suspended type, and embedded type, and different customized dimensions are also acceptable, which can meet install location requirements of different fields and occasions.

    If you have any questions and suggestions, please feel free to contact us via email, we will give you a satisfactory reply within 24 hours.


    • FEATURES
    1. Economical】Save 85% on electricity bill of lighting.
    2. Long lifeQuality and well made, last over 50,000 hours, reduce lights replacing frequency.
    3. Eye-protective designAdopting the plastic white lampshade and qualified LED chips, it lights uniformly without flicker and protects your eyes from harsh and glaring lights.
    4. Safe and environmentalsafe, green, durable, no mercury and hazardous substance contained.

    • DETAILS
    Item:Led Linear Light Trunking System
    Style:S-LineMaterial:Aluminum Alloy + PMMA lens / PC cover
    Length:1200mm, 1500mm, 2400mm, 3000mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm, 1200mm, 1500mm, 2400mm, 3000mmInput Voltage:AC220-240VAC/100-277VAC
    UGR:<19CRI (Ra>):80/95
    Beam Angle:25°;60°;90°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Lumen:4800lm-19800lmDimming:DALI, 1-10V, DIMswitch
    Driver:Coreshine/RubyconColor:White, Black, Silver
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:160lm/wPower:35W,50W,65W,70W,100W,150W...
    Warranty:5 yearsLifespan:50000 hours
    InstallationChain, Cord, Rod, Surface MountedConnectorL/T/X Node Connector can be choose
    FunctionDimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
    Switch Type:Motion Sensor SwitchShipping:DHL/UPS/FEDEX/TNT...
    Applications:Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

    • APPLICATIONS
    Suitable for Supermarket, Warehouse, Workshop, Office, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.

    CB LED Linear Trunking System , 45Watt Warehouse Pendant Light

    • Returns of Investment COMPARISON

    We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

    300 sq.m
    UniteS-LineLED Tube
    Lighting Effectlm/w160100
    Qty of Luminaireset600960
    Total Power ConsumptionKW3048
    Unite Price of ElectricCNY/KWH1.5
    Light TimeHour/Day1.2
    Electric bill/dayCNY540.00864.00
    Electric bill/monthCNY16,200.0025,920.00
    Electric bill/yearCNY194,400.00311,040.00
    Save the cost per yearCNY116,640.00

    • FAQ

    Q1. Can I have a sample order for the led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A: Sample needs 5-10 days, mass production time needs 3-4 weeks for order quantity more than 1000pcs
    Q3. Do you have any MOQ limit for the led light order?
    A: Low MOQ, 1pc for sample checking is available
    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
    Q5. How to proceed with an order for led light?
    A: Firstly let us know your requirements or application.
    Secondly, We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places a deposit for formal order.
    Fourthly We arrange the production.
    Q6. Is it OK to print my logo on led light product?
    A: Yes. only available for mass order.
    Q7: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
    Secondly, during the guarantee period, we will send new lights with a new order for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.


    • OUR ADVANTAGES
    • 5 years warranty
    • Toolless installation
    • Brand Components
    • Heat radiating area 106cm²/w
    • Longer warranty, Less maintenance
    • Rigorous technical
    • Quick connector
    • Electrical safety design
    • Organized wiring
    • Modularity, integration structure
