Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture

Shenzhen Coreshine Optoelectronics Co.,Ltd
Contact Now
    Buy cheap Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture from wholesalers

    Buy cheap Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture from wholesalers
    • Buy cheap Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture from wholesalers
    • Buy cheap Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture from wholesalers
    • Buy cheap Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture from wholesalers

    Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CUL-xxxx-X1X2-X3WH
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

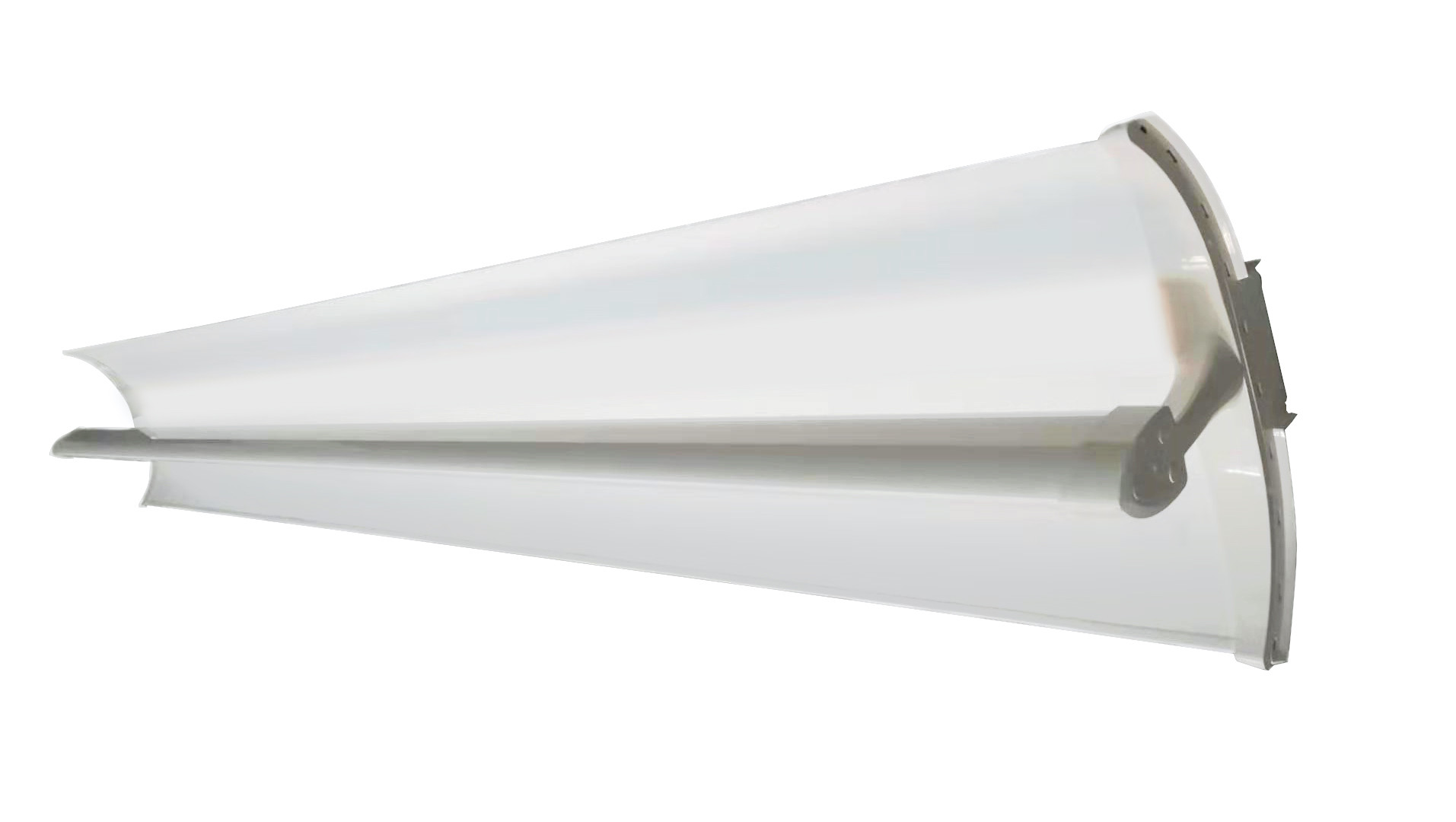

    Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture

    Linear Indirect Lighting with Reflector , Replace for Fluorescent Light Fixture


    Quick Replaced Led Linear Indirect Light Trunking System1.2m 1.5m 2.4m


    PRODUCT DESCRIPTION

    Coreshine U-LINE CoreShine LED Linear Fixtures are an ideal solution for your utility lighting needs. These 1500mm long shop lights feature pull chain on-off switching and a grounded 3-prong outlet cord. Integrated LEDs with a life span of 50,000 hours make these a maintenance-free solution for years to come. They can be flush mounted or suspended from hooks and chains. The body is made from shatter-resistant polycarbonate and has a white finish and cord. The output is cool white (4000K) at a bright 4000 lumens with a 120-degree beam angle. Use for supermarkets, warehouses, garages, workshops, basements, storage units, under cabinets, or anywhere extra lighting is needed. UL Listed.
    • Quick and easy linking system, plugged-in or Hardwired optional.
    • Rated for continuous operation, voltage and constant current driving, good reliability.
    • Easy- install aluminum plate, convenient to maintain, excellent heat dissipation, resistant to rust.
    • 4 colors changing, 3000K/4000K/5000K/6000K, high CRI 90 provides excellent lighting effects.
    • 50,000 hours life with 5 years warranty. ETL listed and Energy Star certified.
    PRODUCT DETAILS

    Dimming & Multi-Sensor System

    · 3 different dimming system, DALI, 0-10V and DIMswitch

    · It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.


    Trunking Rail

    · Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

    · The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply, up to 100 meters.


    Node Connector

    · L, T and X Standard Module Node connectors

    · Each node connector has diverse of electrical feed-in and feed-out


    135-150lm/W
    The high lumens efficiency of 135~150 lm per Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.

    Uplighting

    Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available


    Length Options

    Different length with various power is available

    Europe standards and North American standards

    Length
    H x W x L(mm)
    Power
    Lumen
    Code No.
    1200mm
    185x236x1205
    30W
    4800lm
    CUL-1230-X1X2-X3WH
    1200mm
    185x236x1205
    40W
    6400lm
    CUL-1240-X1X2-X3WH
    1200mm
    185x236x1205
    60W
    9600lm
    CUL-1260-X1X2-X3WH
    1500mm
    185x236x1503
    35W
    5600lm
    CUL-1535-X1X2-X3WH
    1500mm
    185x236x1503
    50W
    8000lm
    CUL-1550-X1X2-X3WH
    1500mm
    185x236x1503
    70W
    11200lm
    CUL-1570-X1X2-X3WH
    2400mm
    185x236x2406
    60W
    9600lm
    CUL-2460-X1X2-X3WH
    2400mm
    185x236x2406
    80W
    12800lm
    CUL-2480-X1X2-X3WH
    2400mm
    185x236x2406
    120W
    19600lm
    CUL-24120-X1X2-X3WH

    SPECIFICATIONS
    Item:Led Linear Light Trunking System
    Style:U-LineMaterial:Stainless Steel + PMMA lens / PC cover
    Length:1200mm, 1500mm, 2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm, 1200mm, 1500mm, 2400mm, 3000mmInput Voltage:AC220-240VAC/100-277VAC
    UGR:<19CRI (Ra>):80/95
    Beam Angle:60°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Lumen:4000lm-16000lmDimming:DALI, 1-10V, DIMswitch
    Driver:Coreshine/RubyconColor:White Housing
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:135lm/w-150lm/wPower:35W,50W,65W,70W,100W,150W...
    Warranty:5 yearsLifespan:50000 hours
    InstallationChain, Cord, Rod, Surface MountedConnectorL/T/X Node Connector can be choose
    FunctionDimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
    Switch Type:Motion Sensor Switch OptionalShipping:DHL/UPS/FEDEX/TNT...
    Applications:Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects...

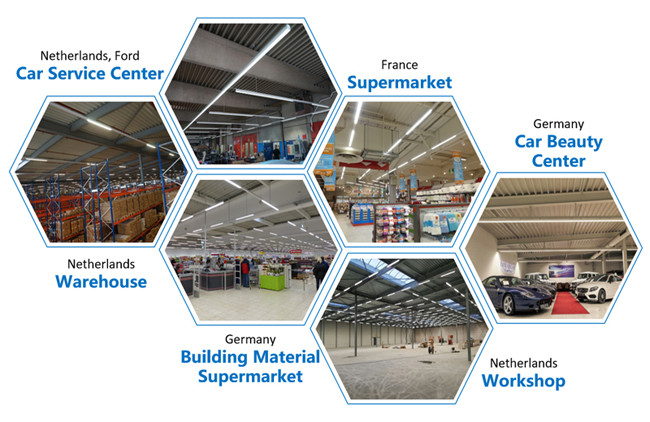

    APPLICATIONS

    To be accessorial lights for commercial places, industrial, building hall, hotel, store, shop and so on.

    Applications include spotlighting in offices, residential applications, museums, galleries, retail environments, cafes etc.


    FAQ

    Q:Do you have patent for this product?

    A:Yes,we have patent in appearance design and function design.

    Q:What is the maximum power in one line?

    A:3500W

    Q:Can it be DALI or 1-10V dimming?

    A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.


    OUR SERVICES

    a. Original design and unique products based on our own R& D team, and factory.

    b. Able to provide OEM/ODM solutions tailored to customer needs; can customize retail box packing, etc.

    b. For your inquiry, we're to reply in detail within 24hours.

    c. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.


    ADVANTAGES

    1. Quality is our Culture

    2. Fast Delivery Time

    3. Legal Business Assurance and Trust

    4. Professional Customer-care Service

    5. Customization is acceptable

    6. Cooperate to Develop Your New Products


    PICTURES
    Coreshine Ra90 Replacing Fluorescent Light Fixture For Architecture
    Coreshine Ra90 Replacing Fluorescent Light Fixture For ArchitectureCoreshine Ra90 Replacing Fluorescent Light Fixture For ArchitectureCoreshine Ra90 Replacing Fluorescent Light Fixture For ArchitectureCoreshine Ra90 Replacing Fluorescent Light Fixture For Architecture
