    UL Indirect Light Fittings , 2.4m Supermarket LED Lighting

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CUL-xxxx-X1X2-X3WH
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    UL Indirect Light Fittings , 2.4m Supermarket LED Lighting

    UL 2400mm 60W Pre Wired Linear Indirect Lighting for Supermarket


    Linkable Led Linear Indirect Lighting System DTL RoHS TUV GS Proved


    DESCRIPTION

    Coreshine U-LINE is a INDIRECT LIGHITNG DIFFUSER, PRO-LINEAR, LED LINEAR TRUNKING SYSTEM MODULAR SUPERMARKET LIGHTS, multiple Beam Angle, Switch built in luminaire, easy and convenient for installation and maintenance. it is an ideal alternative to traditional linear fluorescent lights in a varriety of industral and commercial applications.

    Lighting System is a modular concept consisting of trunking rails, luminaire inserts and accessories.

    • Unique design
    • Tools Free Installation
    • 10% of the light upward and 90% reflected onto the floor
    • Delivering up to 150 lm/w
    • Low UGR <19. Perfect for school, library, classroom, shops, industry, commercial and hospitality
    • More profitability and productivity
    DETAILS

    Dimming & Multi-Sensor System

    · 3 different dimming system, DALI, 0-10V and DIMswitch

    · It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.


    Trunking Rail

    · Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

    · The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.


    Installation

    · Chain Installation

    · Cord Installation

    · Rod Installation

    · Surface Mounted

    . Mounting Clip


    135-150lm/W
    The high lumens efficiency of 135~150 lm per Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.
    Blank Cover

    Install to trunking rail where there is no requirement of luminaire .

    At each of the blank cover there is a stopper to prevent the lights from being emmited.


    Uplighting

    Directs 10% of the light upward to the celling and 90% reflected onto the floor ,with or without uplighting is available


    Length Options

    Different length with various power is available

    Europe standards and North American standards


    North American StandardEuropean Standard
    Options

    ·1200mm

    30W 4000lm / 45W 6000lm / 60W 8000lm

    ·2400mm

    60W 8000lm/ 90W 12000lm/ 120W 16000lm

    . Flicker/non-flicker driver optional

    . 0-10V driver optional

    . 1500mm

    35W 5000lm/ 50W 7000lm/ 70W 10000lm

    . 2400mm

    70W 10000lm / 120W 17000lm

    . Flicker/non-flicker driver optional

    . Dali/1-10V/standard driver optional

    Description

    Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W

    Length : 2400MM

    Constant current LED driver

    Life time:50,000h

    5 years warranty

    Electrical Characteristics | Output Selectable Driver | 50W/70W

    Length : 1500MM

    Constant current LED driver

    Life time: 50,000h

    5 year warranty

    Properties

    High efficiency >=88%

    Over voltage protection with automatic restart

    Overload protection

    Short-circuit protection with automatic restart

    Surge voltage: 2.5KV

    High efficiency >=90%

    Over voltage protection with automatic restart

    Overload protection

    Short-circuit protection with automatic restart

    Surge voltage: 2.5KV

    SPECIFICATIONS
    Item:Led Linear Light Trunking System
    Style:U-LineMaterial:Aluminum Alloy + PMMA lens / PC cover
    Length:1200mm, 1500mm, 2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm, 1200mm, 1500mm, 2400mm, 3000mmInput Voltage:AC220-240VAC/100-277VAC
    UGR:<19CRI (Ra>):80/95
    Beam Angle:60°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Lumen:4000lm-16000lmDimming:DALI, 1-10V, DIMswitch
    Driver:Coreshine/RubyconColor:White Housing
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:135lm/w-150lm/wPower:35W,50W,65W,70W,100W,150W...
    Warranty:5 yearsLifespan:50000 hours
    InstallationChain, Cord, Rod, Surface MountedConnectorL/T/X Node Connector can be choose
    FunctionDimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
    Switch Type:Motion Sensor Switch OptionalShipping:DHL/UPS/FEDEX/TNT...
    Applications:Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects...
    APPLICATIONS
    • Warehouse / Factory / Workshop

    • Hotel / Hospital / Supermarket

    • Conference / Meeting room / Factory / Office

    • Residential Home / Institution Building

    • School / College / University

    • Church / Theater / Sport Area

    FAQ

    Q:Do you have a factory ?

    A:Yes,we are the top professional manufacture for this product.

    Q:Do you have patent for this product?

    A:Yes,we have patent in appearance design and function design.

    Q:What is the maximum power in one line?

    A:3500W

    Q:Can it be DALI or 1-10V dimming?

    A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.


    OUR SERVICES

    a. Original design and unique products based on our own R& D team, and factory.

    b. Able to provide OEM/ODM solutions tailored to customer needs; can customize retail box packing, etc.

    b. For your inquiry, we're to reply in detail within 24hours.

    c. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.


    ADVANTAGES

    1. Quality is our Culture

    2. Fast Delivery Time

    3. Legal Business Assurance and Trust

    4. Professional Customer-care Service

    5. Customization is acceptable

    6. Cooperate to Develop Your New Products


    PICTURES

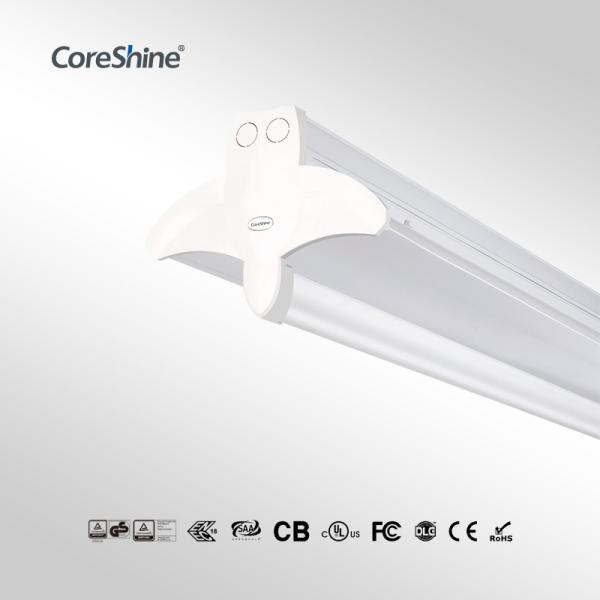

    UL Indirect Light Fittings , 2.4m Supermarket LED Lighting
