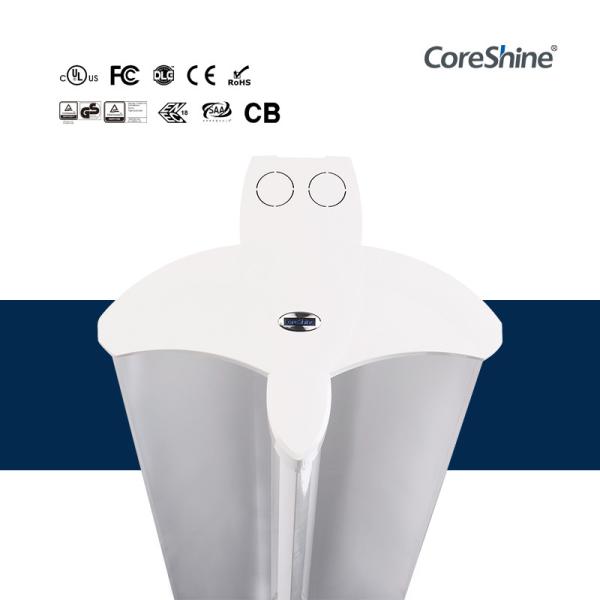

8ft 120W Linear Indirect Lighting , Replace for Fluorescent Light
Fixture
Low UGR Led Linear Indirect Lighting Trunk System in Office 1200mm
45w
DESCRIPTION
Coreshine U-LINE Indirect Led Linear Lighting System is a new innovative solution
for creating beautiful and efficient lighting.
* Unique design
* Tools Free Installation
* 10% of the light upward and 90% reflected onto the floor
* Delivering up to 150 lm/w
* Low UGR <19. Perfect for school, library, classroom, shops, industry,
commercial and hospitality
* more profitability and productivity.
DETAILS
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring
with 2.5mm²cable for power supply and 1.5mm² cable for dimming
control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one
serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency
supply in the event of a power failure to provide sufficient light
and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as
two independent emergency lighting circuits in the trunking.
135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction
on energy consumption and additional cost. The LEDs keeps enough
margin to make sure the luminaire efficiency reach the best level.
Blank Cover
Install to trunking rail where there is no requirement of
luminaire.
At each of the blank cover there is a stopper to prevent the lights
from being emmited.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected
onto the floor, with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two
kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
Length | H x W x L(mm) | Power | Lumen | Code No. |
1200mm | 185x236x1205 | 30W | 4800lm | CUL-1230-X1X2-X3WH |
1200mm | 185x236x1205 | 40W | 6400lm | CUL-1240-X1X2-X3WH |
1200mm | 185x236x1205 | 60W | 9600lm | CUL-1260-X1X2-X3WH |
1500mm | 185x236x1503 | 35W | 5600lm | CUL-1535-X1X2-X3WH |
1500mm | 185x236x1503 | 50W | 8000lm | CUL-1550-X1X2-X3WH |
1500mm | 185x236x1503 | 70W | 11200lm | CUL-1570-X1X2-X3WH |
2400mm | 185x236x2406 | 60W | 9600lm | CUL-2460-X1X2-X3WH |
2400mm | 185x236x2406 | 80W | 12800lm | CUL-2480-X1X2-X3WH |
2400mm | 185x236x2406 | 120W | 19600lm | CUL-24120-X1X2-X3WH |
SPECIFICATIONS
| Item: | Led Linear Light Trunking System |
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover |
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) |
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC |
| UGR: | <19 | CRI (Ra>): | 80/95 |
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K |
| PF: | >0.95 | THD: | <15% |
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch |
| Driver: | Coreshine/Rubycon | Color: | White Housing |
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White |
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... |
| Warranty: | 5 years | Lifespan: | 50000 hours |
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose |
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light |
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... |
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and
Industrial Projects... |
FEATURES
- Innovative Structure Design
- Operating temperature -22C to 65°C
- Linkable for continuous runs
APPLICATIONS
- Warehouse / Factory / Workshop
- Hotel / Hospital / Supermarket
- Conference / Meeting room / Factory / Office
- Residential Home / Institution Building
- School / College / University
- Church / Theater / Sport Area
FAQ
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
OUR SERVICES
1.We will reply to the lead time within 24 hours after receiving
the customer's confirmation of each order.
2.Take photos of the goods during production and send them to
customers.
3.Take pictures of goods after packaging and labeling and send them
to customers.
4.Take photos of goods loading before shipment, and arrange the
customs clearance information of goods and send them to the
customers. 5.We will track the logistics information and update it
to the customer at any time if the goods are delivered by express.
6.We will remind the customer to prepare the customs clearance
documents for the goods before they arrive at the port.
ADVANTAGES
1.Raw material 100% check before production.
2.Order must have a first sample and full check before
manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing
