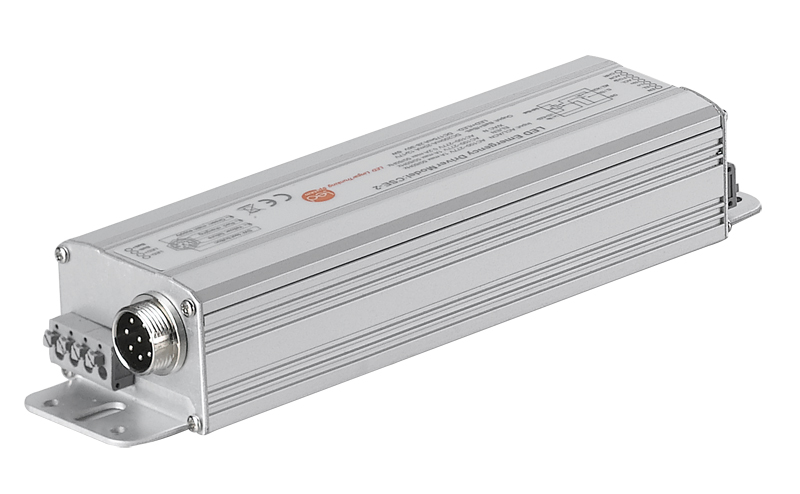

    12W 60HZ LED Emergency Driver For S-Line Linear Trunking System

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CSD-Ex
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 4-6 working days
    • Product Details
    • Company Profile

    12W 60HZ LED Emergency Driver For S-Line Linear Trunking System

    Emergency Driver for S-Line Linear Trunking System
    Linear Led Lighting Accessories Emergency Driver
    Coreshine Emergency Lighting Driver is integrated into a luminaire that is for general lighting, It can provide full power or reduced power emergency lighting. It is an ideal choice for places that require high emergency luminance and a neat appearance for the whole solution.

    Status Indicating Wire

    There is a wire with status indicators for showing the operation status of the emergency lighting system and performing regular functional test.


    Test button and three indicators (green, yellow and red) are in the indicating wire. Regular test on the emergency function can be simulated by the test button to make sure they will operate when required. Press and hold on the button, and to make sure they will operate when required. Press and hold on the button, and then power will be cut-off and emergency lighting operation will be activated.


    Signals of the indicators are as follwing.

    Green indicator:

    On --- Mains supply is connected

    Off --- Mains supply in disconnected

    Red indicator:

    On --- Battery is charging

    Off --- Battery charging finished

    Yellow indicator:

    On --- System failure

    Off --- Working

    Installation of the indicating wire is to insert it in the lamp by one side. The other side with indicators sketches outside.


    Description
    • LED driver for emergency function
    • Universal voltage input range
    • Aluminum casing, encapsulated
    • Lifitime: 50,000 h
    • 5 year warranty
    Properties
    • 100% output when connected to a generator or central battery system
    • 3W, 6W or 12W output when connected to the built-in battery
    • High recharging efficiency >=80%
    • High discharging efficiency >=90%
    Europe StandardUSA Standard
    Order NumberCSD2S-E1CSD2S-E2CSD-E1CSD-E2
    Power6W12W6W12W
    Input VoltageAC220-240VAC100-277V
    Output Voltage (to LED)55-80VDC27-38VDC
    Output Voltage (to battery)12-18VDC
    Input Current
    0.1A0.2A max
    Output Current75mA150mA160mA320mA
    Normal Charging Current200mA360mA200mA360mA
    Trickle Charging Current20mA30mA20mA30mA
    Storage Temperature-40 - 85 ℃
    Max. Casing Temperature75 ℃
    Ambient Temperature-25 - 60 ℃

    DescriptionCode No.
    Dimming Driver - Extra1-10V DimmingCSD1S-X2-10
    DALI DimmingCSD1S-X2-DA
    DALI PSCSD-PS
    Emergency Driverwith 6W outputCSD-E1
    with 12W outputCSD-E2
    Emergency Battery1800mAh BatteryCSB1
    3600mAh BatteryCSB2
