White Slim 1.5m 50W LED Linear Track Light For Retail Store

Shenzhen Coreshine Optoelectronics Co.,Ltd
Contact Now
    Buy cheap White Slim 1.5m 50W LED Linear Track Light For Retail Store from wholesalers

    Buy cheap White Slim 1.5m 50W LED Linear Track Light For Retail Store from wholesalers
    • Buy cheap White Slim 1.5m 50W LED Linear Track Light For Retail Store from wholesalers
    • Buy cheap White Slim 1.5m 50W LED Linear Track Light For Retail Store from wholesalers

    White Slim 1.5m 50W LED Linear Track Light For Retail Store

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CTL-1535-X1X2-X3WH
    Certification : CE/CB/ETL/DTC/SAA/FCC/GS/UL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

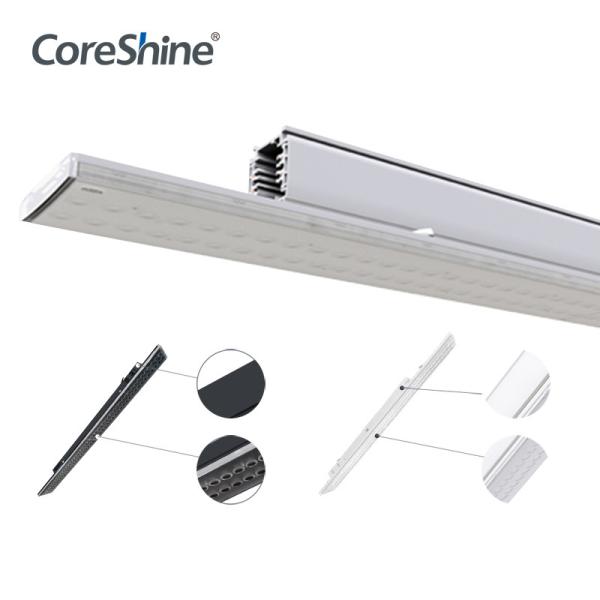

    White Slim 1.5m 50W LED Linear Track Light For Retail Store

    White Slim Linear Track Lighting 1500mm 50W for Retail Store


    Commercial Led Track Linear Light Distributor 1500mm 40W 3000K-6000K


    ​​DESCRIPTION

    CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.

    T-line track linear is a custom design with perfectly matched to Europe 4 wire and North America 3 wires track rail. This new track linear is a continuous seamless lighting with option in-between to install track spot lights, even as a various lens options according to projects requirements. This new track linear is totally tool less easy to install saves time, cost and labor.


    • With slim size design and make driver together with adaptor insert into the track rail, it looks like one body with the track rail.
    • With 60°,90°,120°double asymmetrical optic lens & PC cover available, it is perfect suitable for retail projects such as supermarket,retail shops,car showroom, fashion stores etc.
    • With DIP-SWITCH driver,can adjust power according to project need.
    • Seam-less connection,maximum power in one line is 2200W.

    Item:Led Linear Track Light System
    Series:T-LineInput Voltage:AC220-240VAC/100-277VAC
    Length:600mm,1200mm,1500mm,2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mmMaterial:Aluminum Alloy + PMMA lens / PC cover
    UGR:<19CRI (Ra>):80/95
    Beam Angle:60°;90°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Switch Type:Motion Sensor SwitchLumen:2128lm-16000lm
    Driver:Flicker driver / Non-flicker driverColor:White, Black
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:160lm/wPower:14W-20W,35W-50W,70W-100W
    Warranty:5 yearsLifespan:50,000 h
    Function:Sensor, Track Spot Light, Emergency Exit LightShipping:DHL/UPS/FEDEX/TNT...
    Applications:Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...
    • Output selectable by DIP switch
    • Constant current LED driver
    • Universal voltage input range

    TRACK LINEAR

    • ​DETAILS
      • Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
      • For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
      • For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
      • Flexible change of installation position
      • Existing track rail
      • Track rail (4 wires / 3 phases)Track rail (3 wires / 1 phase)

        3 separated switchable circuits

        Adapter track box design ensures easy and intuitive fitting in the 3-phase track

        For North America Standard track spot light, there is only one circuit in the lamp.
        White Slim 1.5m 50W LED Linear Track Light For Retail StoreWhite Slim 1.5m 50W LED Linear Track Light For Retail Store
    • ADVANTAGES
      • Track Spot light can be installed in between
      • Track Linear can be used to existing track rail

    LUMINAIRE

    • MULTIPLE OPTIONS

    ​1.​Different length with various power is available for Europe standards and North American standards.

    Length
    Power
    L x W x HCRI
    Lumen
    Code No.
    600mm
    14W/16W/18W/20W
    600x60x11mm>80Ra
    2240lm-3200lm
    CTL-06xx-X1X2-X3WH
    600mm14W/16W/18W/20W600x60x11mm>90Ra2128lm-3040lmCTL-06xx-X1X2-X3WH
    1200mm
    35W/40W/45W/50W
    1200x60x11mm>80Ra
    5600lm-8000lm
    CTL-12xx-X1X2-X3WH
    1500mm
    35W/40W/45W/50W
    1493x60x11mm>80Ra
    5600lm-8000lm
    CTL-15xx-X1X2-X3WH
    1500mm35W/40W/45W/50W1493x60x11mm>90Ra5320lm-7600lmCTL-15xx-X1X2-X3WH
    2400mm
    70W/80W/90W/100W
    2400x60x11mm>80Ra
    11200lm-16000lm
    CTL-24xx-X1X2-X3WH

    2. Different diffuser for different distribution

    • Narrow 60° UGR<19
    • Wide 90°
    • Flat 120°
    • Double Asymmetric

    White Slim 1.5m 50W LED Linear Track Light For Retail Store

    • OPTICS

    The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.​

    White Slim 1.5m 50W LED Linear Track Light For Retail Store

    • APPLICATIONS

    Suitable for Supermarket, Warehouse, Workshop, Office, Stores, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.​

    White Slim 1.5m 50W LED Linear Track Light For Retail StoreWhite Slim 1.5m 50W LED Linear Track Light For Retail Store

    CUSTOMIZATION


    • Fitting color can be refinished
    • Can be supplied with 3/4 circuit track adaptor
    • Dimmable options also available by special request
    • Customization options are subject to availability and minimum order quantities

    FAQ

    Q1: Can I have a sample for this color?
    A: Yes, we welcome sample order to test and check quality. Mixed sample are acceptable.

    Q2: What about the lead time?
    A: Samples needs 3-5 days, mass production time needs 1-2 weeks for order quality.

    Q3: Do you have any MOQ limit?
    A: Low MOQ, 1pcs for sample checking is available.

    Q4: How do you ship and how long does it take to arrive?
    A: We usually ship by UPS, FedEx or TNT for small order. I t usually takes 5-7 working days to arrive. Airline and sea shipping also optional for bigger order.

    Q5: How to proceed an order?

    1. Let us know your requirements or application.
    2. We quote according to your requirements or our suggestions.
    3. Customer confirms the samples and places deposit for formal order.
    4. We arrange the production.
    5. We dispatch the LED Linear Light by UPS, air, sea etc. When production finished.

    Q6: Is it OK to print my logo on this light?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q7: Do you offer guarantee for this led linear light?

    A: Yes, we offer 5 years warranty.



    OUR SERVICES


    1. Raw material 100% check before production.

    2. Order must have a first sample and full check before the manufacturing process.

    3. 100% check before aging.

    4. 24 hours aging with 500 times on off testing.

    5. 100% final inspection before packing.
