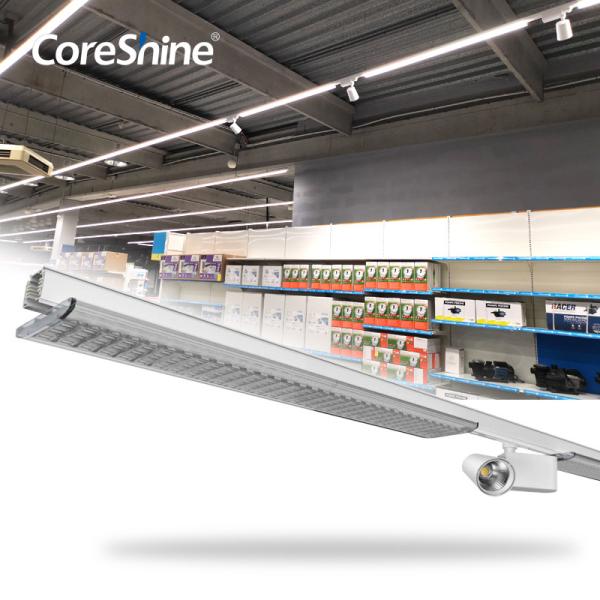

Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light

    Buy cheap Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light from wholesalers

    Buy cheap Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light from wholesalers
    • Buy cheap Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light from wholesalers
    • Buy cheap Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light from wholesalers

    Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CTL-2470-X1X2-X3WH
    Certification : CE/CB/ETL/DTC/SAA/FCC/GS/UL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light

    Slim DALI 2 Led Linear Track Light | Perfect Match with Track Spot Light


    Energy-Saving Led Linear Track Light Module in Supermarket 2400mm 70W


    ​​DESCRIPTION

    CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.

    T-line track linear is a custom design with perfectly matched to Europe 4 wire and North America 3 wires track rail. This new track linear is a continuous seamless lighting with option in-between to install track spot lights, even as a various lens options according to projects requirements. This new track linear is totally tool less easy to install saves time, cost and labor.


    • Simple and modern design, screwless at the end cap.
    • Extrusion aluminum lamp body and PC cover.
    • Smooth and soft lighting effect, no dark dot, and shadow at the lighting area.
    • Various installation: Suspended, ceiling, and recessed.
    • 2 colors of the lamp body, white, black.
    • Continuous connection at max 3500w run.

    Item:Led Track Linear Light System
    Series:T-LineInput Voltage:AC220-240VAC/100-277VAC
    Length:600mm,1200mm,1500mm,2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mmMaterial:Aluminum Alloy + PMMA lens / PC cover
    UGR:<19CRI (Ra>):80/90/95
    Beam Angle:60°;90°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Function:Sensor, Track Spot Light, Emergency Exit LightLumen:2128lm-16000lm
    Driver:Flicker driver / Non-flicker driverColor:White, Black
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:160lm/wPower:14W-20W,35W-50W,70W-100W
    Warranty:5 yearsLifespan:50,000 h
    Switch Type:Motion Sensor SwitchShipping:DHL/UPS/FEDEX/TNT...
    Applications:Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

    TRACK LINEAR

    • ​DETAILS
      • Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
      • For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
      • For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
      • Flexible change of installation position
      • Existing track rail
      • Track rail (4 wires / 3 phases)Track rail (3 wires / 1 phase)

        3 separated switchable circuits

        Adapter track box design ensures easy and intuitive fitting in the 3-phase track

        For North America Standard track spot light, there is only one circuit in the lamp.
        Slim DALI 2 2400mm 70W 11200lm LED Linear Track LightSlim DALI 2 2400mm 70W 11200lm LED Linear Track Light
    • ADVANTAGES
      • Track Spot light can be installed in between
      • Track Linear can be used to existing track rail

    LUMINAIRE

    • MULTIPLE OPTIONS

    ​1.​Different length with various power is available for Europe standards and North American standards.

    Length
    Power
    L x W x HCRI
    Lumen
    Code No.
    600mm
    14W/16W/18W/20W
    600x60x11mm>80Ra
    2240lm-3200lm
    CTL-06xx-X1X2-X3WH
    600mm14W/16W/18W/20W600x60x11mm>90Ra2128lm-3040lmCTL-06xx-X1X2-X3WH
    1200mm
    35W/40W/45W/50W
    1200x60x11mm>80Ra
    5600lm-8000lm
    CTL-12xx-X1X2-X3WH
    1500mm
    35W/40W/45W/50W
    1493x60x11mm>80Ra
    5600lm-8000lm
    CTL-15xx-X1X2-X3WH
    1500mm35W/40W/45W/50W1493x60x11mm>90Ra5320lm-7600lmCTL-15xx-X1X2-X3WH
    2400mm
    70W/80W/90W/100W
    2400x60x11mm>80Ra
    11200lm-16000lm
    CTL-24xx-X1X2-X3WH

    2.Different diffuser for different distribution

    • Narrow 60° UGR<19
    • Wide 90°
    • Flat 120°
    • Double Asymmetric

    Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light

    • OPTICS

    The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.​

    Slim DALI 2 2400mm 70W 11200lm LED Linear Track Light

    • APPLICATIONS
      • Comercial - Supermarket, Retail Shop,
      • Industrial - Warehouse, Workshop, Factory
      • Other Indoor Places - Office, Garage, School, Library, Hospital and other Architectural Places

    Slim DALI 2 2400mm 70W 11200lm LED Linear Track LightSlim DALI 2 2400mm 70W 11200lm LED Linear Track Light

    CUSTOMIZATION


    • Fitting color can be refinished
    • Can be supplied with 3/4 circuit track adaptor
    • Dimmable options also available by special request
    • Customization options are subject to availability and minimum order quantities

    FAQ

    Q1: Are you a factory?
    A: Yes, we are a professional manufacture focus on LED lighting which widely used in Supermarkets, Warehouses, Stores, Museums, etc.

    Q2: How do you offer samples?
    A: Samples for charge with shipping cost paid by the clients

    Q3: What is your delivery time?
    A: Sample order: 3-7 working days
    Mass order: 12-18 working days after 30% deposit received

    Q4: What is your warranty?
    A: We offer 5 year warranty for the products.

    Q5: Can your factory make the lights based on customers' design?
    A: Yes, we offer OEM and ODM service, we have professional engineers to design and produce according to your requirement.

    Q6:Where is your factory? How can I get there?
    A: Our factory is located in Guanlan, Shenzhen, Guandong Province, about 1 hours by car from Baoan airport ; 2 hours by car from Guangzhou. Welcome to visit our factory!


    OUR ADVANTAGES


    • 5 years warranty
    • Toolless installation
    • Brand Components
    • Heat radiating area 106cm²/w
    • Longer warranty, Less maintenance
    • Rigorous technical
    • Quick connector
    • Electrical safety design
    • Organized wiring
    • Modularity, integration structure
