    2.4m 80 Watt 16000lm Slim LED Linear Track Light For Retail Store

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CTL-xxxx-X1X2-X3WH
    Certification : CE/CB/ETL/DTC/SAA/FCC/GS/UL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    2.4m 80 Watt 16000lm Slim LED Linear Track Light For Retail Store

    Slim Led Linear Track Light for Retail Store | Match with Spot Light


    Continuous-Row Rail Led Linear Track Lighting Rail Fitting Europe Standard


    ​​DESCRIPTION

    CoreShine T-LINE track linear is a custom design with perfectly matched to Europe 4 wire and North America 3 wires track rail. This new track linear is a continuous seamless lighting with option in-between to install track spot lights, even as a various lens options according to projects requirements. This new track linear is totally tool less easy to install saves time, cost and labor.


    1. High energy saving, Save 10 kWh every day .

    2. High lumen with cheap prices.

    3. Safety, High efficiency, Environmental protection

    4. Long service life

    5. Different color for choose

    6. We can provide one-stop service

    7. Strict quality control to ensure customers get satisfactory products


    Item:Led Linear Track Light
    Series:T-LineInput Voltage:AC220-240VAC/100-277VAC
    Length:600mm,1200mm,1500mm,2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mmMaterial:Aluminum Alloy + PMMA lens / PC cover
    UGR:<19CRI (Ra>):80/95
    Beam Angle:60°;90°;120°; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Switch Type:Motion Sensor SwitchLumen:2128lm-16000lm
    Driver:Flicker driver / Non-flicker driverColor:White, Black
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:160lm/wPower:14W-20W,35W-50W,70W-100W
    Warranty:5 yearsLifespan:50,000 h
    Function:Sensor, Track Spot Light, Emergency Exit LightShipping:DHL/UPS/FEDEX/TNT...
    Applications:Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

    TRACK LINEAR

    • ​DETAILS
      • Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
      • For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
      • For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
      • Flexible change of installation position
      • Existing track rail
      • Track rail (4 wires / 3 phases)Track rail (3 wires / 1 phase)

        3 separated switchable circuits

        Adapter track box design ensures easy and intuitive fitting in the 3-phase track

        For North America Standard track spot light, there is only one circuit in the lamp.
        2.4m 80 Watt 16000lm Slim LED Linear Track Light For Retail Store2.4m 80 Watt 16000lm Slim LED Linear Track Light For Retail Store
    • ADVANTAGES
      • Track Spot light can be installed in between
      • Track Linear can be used to existing track rail

    LUMINAIRE

    • MULTIPLE OPTIONS

    ​1.​Different length with various power is available for Europe standards and North American standards.

    Length
    Power
    L x W x HCRI
    Lumen
    Code No.
    600mm
    14W/16W/18W/20W
    600x60x11mm>80Ra
    2240lm-3200lm
    CTL-06xx-X1X2-X3WH
    600mm14W/16W/18W/20W600x60x11mm>90Ra2128lm-3040lmCTL-06xx-X1X2-X3WH
    1200mm
    35W/40W/45W/50W
    1200x60x11mm>80Ra
    5600lm-8000lm
    CTL-12xx-X1X2-X3WH
    1500mm
    35W/40W/45W/50W
    1493x60x11mm>80Ra
    5600lm-8000lm
    CTL-15xx-X1X2-X3WH
    1500mm35W/40W/45W/50W1493x60x11mm>90Ra5320lm-7600lmCTL-15xx-X1X2-X3WH
    2400mm
    70W/80W/90W/100W
    2400x60x11mm>80Ra
    11200lm-16000lm
    CTL-24xx-X1X2-X3WH

    2.Different diffuser for different distribution

    • Narrow 60° UGR<19
    • Wide 90°
    • Flat 120°
    • Double Asymmetric

    2.4m 80 Watt 16000lm Slim LED Linear Track Light For Retail Store

    • OPTICS

    The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.​

    2.4m 80 Watt 16000lm Slim LED Linear Track Light For Retail Store

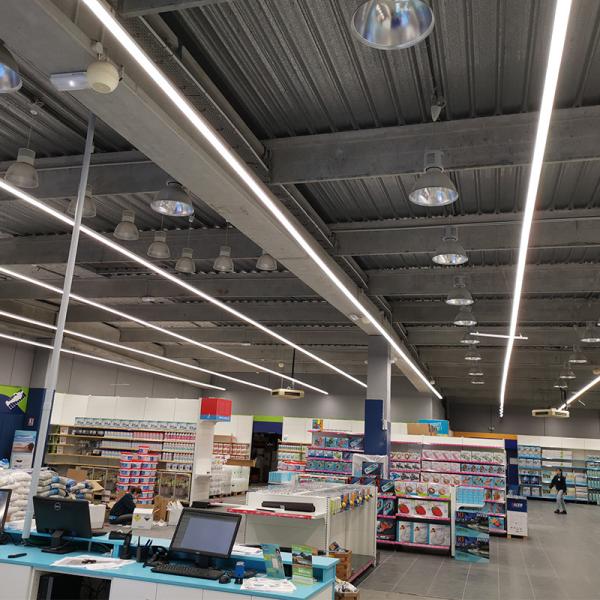

    • APPLICATIONS
    • Supermarket Lighting
    • Store Lighting
    • Workshop Lighting
    • Warehouse Lighting
    • Accent Lighting
    • Guest Room Lighting
    • Office Lighting
    • Indoor Lighting
    • Bar and Restaurant Lighting
    • Commercial Lighting
    • Display Cases (Showroom) Lighting
    • Industrial Lighting
