Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED

Shenzhen Coreshine Optoelectronics Co.,Ltd
Contact Now
    Buy cheap Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED from wholesalers

    Buy cheap Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED from wholesalers
    • Buy cheap Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED from wholesalers
    • Buy cheap Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED from wholesalers

    Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CTL-xxxx-X1X2-X3WH
    Certification : CE/CB/ETL/DTC/SAA/FCC/GS/UL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED

    Ultra Thin 1500mm Linkable Led Shop Lights , Flexible Supermarket Lighting


    Corrosion Proof Hypermarket Track Led Linear Light 600mm 1200mm 1500mm 2400mm


    ​​DESCRIPTION

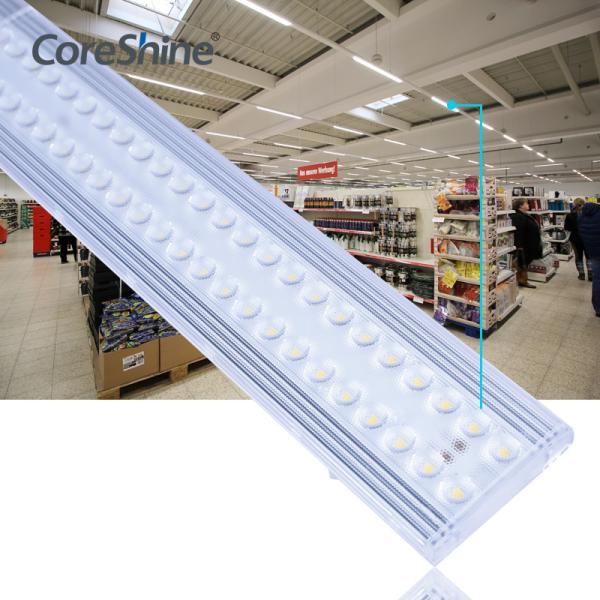

    CoreShine T-LINE LED linear track light System (T-line) is new product, it is mainly used for retail shops, it can match with your existing 4 wires/3 phases track rail such as the brands Global, Eutrac, Staff ect. It can move flexibly and combine with spot lights, what’s more, it’s a standard product,so it’s easy to replace and maintain. For luminaire options, we have length 0.6m with 20w DIP driver and 1.5m with 50w DIP driver, the beam angle has narrow UGR<19 and wide, Flat with PC cover. Very flexible for projects.


    • Seamless continuous connection
    • Special optical design, multiple beam angle, UGR less than 19
    • The trunking rail with built-in connection accessories, to connect the electronic parts and structure
    • Two colors of the lamp body, black, white
    • Installation methods, ceiling, surface mounted and suspending
    • High lumen lighting efficiency up to 160LM/W.

    Item:Led Track Linear Supermarket Lighting Solution
    Series:T-LineInput Voltage:AC220-240VAC/100-277VAC
    Length:600mm,1200mm,1500mm,2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mmMaterial:Aluminum Alloy + PMMA lens / PC cover
    UGR:<19CRI (Ra>):80/90/95
    Beam Angle:60°;90°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Switch Type:Motion Sensor SwitchLumen:2128lm-16000lm
    Driver:Flicker driver / Non-flicker driverColor:White, Black
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:160lm/wPower:14W-20W,35W-50W,70W-100W
    Warranty:5 yearsLifespan:50,000 h
    Function:Sensor, Track Spot Light, Emergency Exit LightShipping:DHL/UPS/FEDEX/TNT...
    Applications:Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

    TRACK LINEAR

    • ​DETAILS
      • Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
      • For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
      • For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
      • Flexible change of installation position
      • Existing track rail
      • Track rail (4 wires / 3 phases)Track rail (3 wires / 1 phase)

        3 separated switchable circuits

        Adapter track box design ensures easy and intuitive fitting in the 3-phase track

        For North America Standard track spot light, there is only one circuit in the lamp.
        Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LEDCoreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED
    • ADVANTAGES
      • Track Spot light can be installed in between
      • Track Linear can be used to existing track rail

    LUMINAIRE

    • MULTIPLE OPTIONS

    ​1.​Different length with various power is available for Europe standards and North American standards.

    Length
    Power
    L x W x HCRI
    Lumen
    Code No.
    600mm
    14W/16W/18W/20W
    600x60x11mm>80Ra
    2240lm-3200lm
    CTL-06xx-X1X2-X3WH
    600mm14W/16W/18W/20W600x60x11mm>90Ra2128lm-3040lmCTL-06xx-X1X2-X3WH
    1200mm
    35W/40W/45W/50W
    1200x60x11mm>80Ra
    5600lm-8000lm
    CTL-12xx-X1X2-X3WH
    1500mm
    35W/40W/45W/50W
    1493x60x11mm>80Ra
    5600lm-8000lm
    CTL-15xx-X1X2-X3WH
    1500mm35W/40W/45W/50W1493x60x11mm>90Ra5320lm-7600lmCTL-15xx-X1X2-X3WH
    2400mm
    70W/80W/90W/100W
    2400x60x11mm>80Ra
    11200lm-16000lm
    CTL-24xx-X1X2-X3WH

    2.Different diffuser for different distribution

    • Narrow 60° UGR<19
    • Wide 90°
    • Flat 120°
    • Double Asymmetric

    Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED

    • OPTICS

    The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.​

    Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED

    • APPLICATIONS

    Supermarket Lighting

    Store Lighting

    Workshop Lighting

    Warehouse Lighting

    Accent Lighting

    Guest Room Lighting

    Office Lighting

    Indoor Lighting

    Bar and Restaurant Lighting

    Commercial Lighting

    Display Cases (Showroom) Lighting

    Industrial Lighting


    Coreshine Flexible Supermarket Lighting , 1500mm Linkable Shop Lights LED

    CUSTOMIZATION


    • Fitting color can be refinished
    • Can be supplied with 3/4 circuit track adaptor
    • Dimmable options also available by special request
    • Customization options are subject to availability and minimum order quantities

    FAQ

    1.How many employees in your factory?

    We have about 260 employees and 200 of them are workers. Because we have many semi-automatic machines,so no need too many workers.


    2.When did CoreShine start to do LED business?

    CoreShine started to do LED business in 2005. At that time,like many other LED manufactures,we also produce variety of products such as LED tubes,spotlights,bulbs,G24 etc.But even though,we still insist on our own design and private mold.


    3.Can I have a sample order?

    Yes, We welcome sample orders to test and check quality. You just need to tell us your requirements by inquiry or message. We will contact with you within 24 hours.


    4.Can I have a customized order?

    Yes, we welcome customized orders. You just need to discuss your requirements with our well-trained specialists. Our R&D team will evaluate and assist your project.


    5.What’s the lead time for standard products?What about for special products,samples and bulk orders?

    Usually we keep a certain quantity of standard products in stock.So for samples,within 3 days;for bulk orders,2-4 weeks.
    For special product,for samples,it depends on how special it is.So it’s hard to tell the lead time for special samples.But once the samples are finished and for bulk orders,once material is ready,the lead time will be same as our standard product.


    6.Is it OK to print my logo on led light product?

    Yes. Please contact us to discuss details.


    7.How do you ship the goods and how long does it take to arrive?

    Small orders usually shipped by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air shipping and sea shipping also available for bulk orders.


    8.Any warranty?

    We offer 5years warranty. Response within 24 business hrs to any warranty application.


    9.How to deal with the faulty?

    Our products are produced in strict quality control system and 100% fully tested before shipment, not random check. We are sorry for any faulty experience you have. Please contact with your sales contact and he or she will guide you step by step for after-sales service within 24 hours.


    OUR ADVANTAGES


    • 5 years warranty
    • Toolless installation
    • Brand Components
    • Heat radiating area 106cm²/w
    • Longer warranty, Less maintenance
    • Rigorous technical
    • Quick connector
    • Electrical safety design
    • Organized wiring
    • Modularity, integration structure
