    150lm/W UGR19 Emergency Light Fixtures Warm White For School

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CUL-xxxx-X1X2-X3WH
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    150lm/W UGR19 Emergency Light Fixtures Warm White For School

    School Led Emergency Linear Light Fitting UGR<19 Indirect Warm White


    DESCRIPTION

    Coreshine U-LINE LED linear light the latest new led trunking linear system, it is divided into 2parts-the aluminum trunking rail and the linear lighting module, easy to install and maintain. It is pre-mounted with 5/8/12 wires, with 3 phase and 4 wires electronic circuit design, can work at the continuous run 250m. It is widely used for supermarkets, warehouses, workshops, fairs, and so on.


    Emergency lighting systems ensures optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.


    Different emergency solutions for you choose

    1. Central battery systems / Generator

    EL1 EN1 & EL2 EN2 makes mode selected

    2. Self contained battery

    Under this mode, the luminaires could be 6W or 12W, working for 1.5 hours or 3 hours (depending on the demand selected in advance)

    Ni-MH battery we used is high temperature resistant, which can make sure its life time to be longer.

    • Low UGR,<19,create comfortable light environment for school,shops & retail industry
    • Indirect light,only see light,not light source,good for eyes
    • High lumens efficiency,135-150lm/W
    • 3-phase pre-selection via moving luminaire male connector to right or left to installation in rail
    • Elegant appearance
    • Inside driver
    • PCB LEDS
    • Easy to install
    • Suspend or surface mounted
    DETAILS

    Trunking Rail

    · Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

    · The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.


    Emergency Lighting Function

    · It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.

    · A wide variety of self contained battery is available, as well as two independent emergency lighting circuits in the trunking.


    Installation

    · Chain Installation

    · Cord Installation

    · Rod Installation

    · Surface Mounted

    . Mounting Clip


    135-150lm/W
    The high lumens efficiency of 135~150 lm per Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.
    Blank Cover

    Install to trunking rail where there is no requirement of luminaire .

    At each of the blank cover there is a stopper to prevent the lights from being emmited.


    Uplighting

    Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available


    Length Options

    Different length with various power is available

    Europe standards and North American standards

    Length
    H x W x L(mm)
    Power
    Lumen
    Code No.
    1200mm
    185x236x1205
    30W
    4800lm
    CUL-1230-X1X2-X3WH
    1200mm
    185x236x1205
    40W
    6400lm
    CUL-1240-X1X2-X3WH
    1200mm
    185x236x1205
    60W
    9600lm
    CUL-1260-X1X2-X3WH
    1500mm
    185x236x1503
    35W
    5600lm
    CUL-1535-X1X2-X3WH
    1500mm
    185x236x1503
    50W
    8000lm
    CUL-1550-X1X2-X3WH
    1500mm
    185x236x1503
    70W
    11200lm
    CUL-1570-X1X2-X3WH
    2400mm
    185x236x2406
    60W
    9600lm
    CUL-2460-X1X2-X3WH
    2400mm
    185x236x2406
    80W
    12800lm
    CUL-2480-X1X2-X3WH
    2400mm
    185x236x2406
    120W
    19600lm
    CUL-24120-X1X2-X3WH

    SPECIFICATIONS
    Item:Led Linear Light Trunking System
    Style:U-LineMaterial:Aluminum Alloy + PMMA lens / PC cover
    Length:1200mm, 1500mm, 2400mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm, 1200mm, 1500mm, 2400mm, 3000mmInput Voltage:AC220-240VAC/100-277VAC
    UGR:<19CRI (Ra>):80/95
    Beam Angle:60°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Lumen:4000lm-16000lmDimming:DALI, 1-10V, DIMswitch
    Driver:Coreshine/RubyconColor:White Housing
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:135lm/w-150lm/wPower:35W,50W,65W,70W,100W,150W...
    Warranty:5 yearsLifespan:50000 hours
    InstallationChain, Cord, Rod, Surface MountedConnectorL/T/X Node Connector can be choose
    FunctionDimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
    Switch Type:Motion Sensor Switch OptionalShipping:DHL/UPS/FEDEX/TNT...
    Applications:Office, Supermarket, Warehouse, Stores, Shops, Commercial and Industrial Projects...
    APPLICATIONS
    • Warehouse / Factory / Workshop

    • Hotel / Hospital / Supermarket

    • Conference / Meeting room / Factory / Office

    • Residential Home / Institution Building

    • School / College / University

    • Church / Theater / Sport Area

    FAQ

    Q:Do you have a factory ?

    A:Yes,we are the top professional manufacture for this product.

    Q:Do you have patent for this product?

    A:Yes,we have patent in appearance design and function design.

    Q:What is the maximum power in one line?

    A:3500W

    Q:Can it be DALI or 1-10V dimming?

    A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.


    OUR SERVICES

    1. We Are Factory With Own R&D Powerful Technology
    2. We Can Offer Best Price With High Quality Products.
    3. Low MOQ Qty To Support Different Sellers.
    4. Support Custom Logo And Box.
    5. Enough Stock To Keep Fast Lead Time.
    6. You Will Enjoy Our Best Service For Customers.


    PICTURES

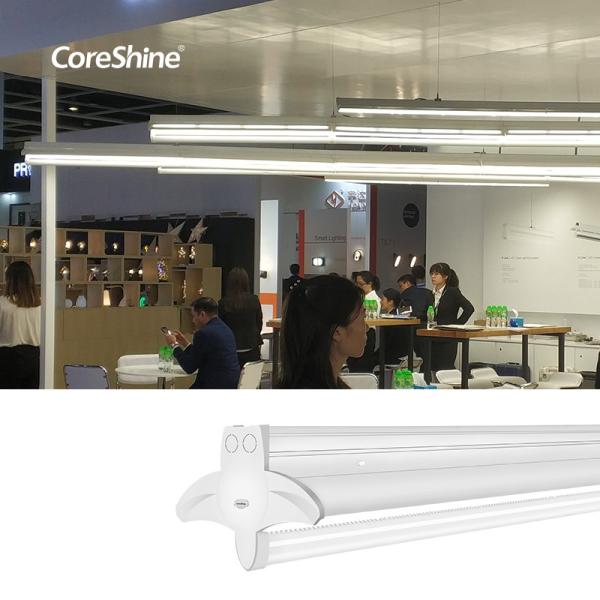

    150lm/W UGR19 Emergency Light Fixtures Warm White For School
