80W Emergency Linear Light

    Buy cheap 80W Emergency Linear Light from wholesalers

    Buy cheap 80W Emergency Linear Light from wholesalers
    • Buy cheap 80W Emergency Linear Light from wholesalers
    • Buy cheap 80W Emergency Linear Light from wholesalers

    80W Emergency Linear Light

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CFL-2480-X1X2-X3WH
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25000-30000 pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    80W Emergency Linear Light

    80W Emergency Linear Light

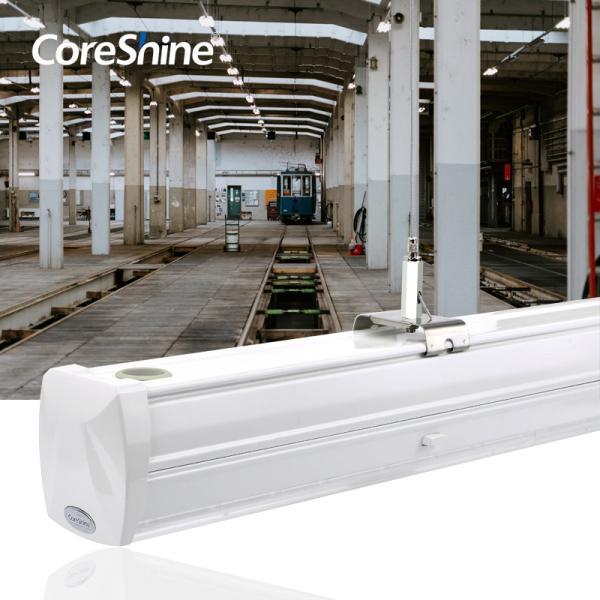

    Suspended Surface Mounted Led Emergency Linear Light in Industrial 2400mm 80W


    Coreshine S-LINE Led Linear Lighting System is an energy-efficient, low maintenance cost, and better alternative to traditional linear fluorescent in a variety of industrial, commercial, and light assembly applications.

    External Emergency Power Supply Model

    In the external emergency supply model, no emergency driver and battery is in the luminaire. Two independent emergency supply - EL1/EN1, EL2/EN2 - in the trunking can be opted for connecting luminaire to the generator or central battery for emergency supply. Each luminaire can be either connected to generator or central battery. Different lamps in one circuit can be opted for generator supply or central battery supply if it is available and necessary.

    When power cuts, emergency supply - EL1/EN1, EL2/EN2 direct connect to generator or central battery. Luminaire lights on for 100% brightness in this case.


    Internal Emergency Power Supply Model

    In the internal emergency supply model, the emergency power supply is from the emergency driver and built-in battery.

    When power cuts, CHR circuit can detect and automatically switch to the emergency driver and built-in battery supply model. Emergency driver is charging for built-in battery, Luminaire lights on with reduced power 6W(CSSD-E1) or 12W(CSSD-E2) under battery operation. There are two options for battery 1800Ah (CSSB1) and 3600mAh (CSSB2) battery. There are two emergency lighting models by battery supply as below.


    Emergency lighting models by emergency driver and built-in battery

    Emergency Power6W (CSSD-E1)12W (CSSD-E2)
    luminous flux960lm1920lm
    Battery1800mAh (CSSB1)3600mAh (CSSB2)
    Duration3h3h

    • FEATURES of Super Led Linear Light System with Emergency Battery
    1. Quick and easy linking system, plugged-in or Hardwired optional.
    2. Rated for continuous operation, voltage and constant current driving, good reliability.
    3. Easy-install aluminum plate, convenient to maintain, excellent heat dissipation, resistant to rust.
    4. 4 colors changing, 3000K/4000K/5000K/6000K, high CRI 90 provides excellent lighting effects.
    5. 50,000 hours life with 5 years warranty. ETL listed and Energy Star certified.
    • DETAILS
    Item:Emergency Led Linear Light Trunking System
    Style:S-LineMaterial:Aluminum Alloy + PMMA lens / PC cover
    Length:1200mm, 1500mm, 2400mm, 3000mmLight Source:Smd2835 (Everlight/Samsung)
    Trunking:600mm, 1200mm, 1500mm, 2400mm, 3000mmInput Voltage:AC220-240VAC/100-277VAC
    UGR:<19CRI (Ra>):80/95
    Beam Angle:25°;60°;90°;120°; Asymmetric; Double AsymmetricCCT:3000K/4000K/5000K/6000K
    PF:>0.95THD:<15%
    Lumen:4800lm-19800lmDimming:DALI, 1-10V, DIMswitch
    Driver:Coreshine/RubyconColor:White, Black, Silver
    IP Rating:IP20Light Color:Warm White, White, Cold White
    Efficiency:160lm/wPower:35W,50W,65W,70W,100W,150W...
    Warranty:5 yearsLifespan:50000 hours
    InstallationChain, Cord, Rod, Surface MountedConnectorL/T/X Node Connector can be choose
    FunctionDimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
    Switch Type:Motion Sensor SwitchShipping:DHL/UPS/FEDEX/TNT...
    Applications:Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...
    • APPLICATIONS
    Suitable for Supermarket, Warehouse, Workshop, Office, Car Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.

    • Returns of Investment COMPARISON

    We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

    300 sq.m
    UniteS-LineLED Tube
    Lighting Effectlm/w160100
    Qty of Luminaireset600960
    Total Power ConsumptionKW3048
    Unite Price of ElectricCNY/KWH1.5
    Light TimeHour/Day1.2
    Electric bill/dayCNY540.00864.00
    Electric bill/monthCNY16,200.0025,920.00
    Electric bill/yearCNY194,400.00311,040.00
    Save the cost per yearCNY116,640.00

    80W Emergency Linear Light

    • FAQ

    Q1. Can I have a sample order for the led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A: Sample needs 5-10 days, mass production time needs 3-4 weeks for order quantity more than 1000pcs
    Q3. Do you have any MOQ limit for the led light order?
    A: Low MOQ, 1pc for sample checking is available
    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
    Q5. How to proceed with an order for led light?
    A: Firstly let us know your requirements or application.
    Secondly, We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places a deposit for formal order.
    Fourthly We arrange the production.
    Q6. Is it OK to print my logo on led light product?
    A: Yes. only available for mass order.
    Q7: Do you offer a guarantee for the products?
    A: Yes, we offer 5 years warranty on our products.
    Q8: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
    Secondly, during the guarantee period, we will send new lights with a new order for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.


    • PICTURES

    80W Emergency Linear Light80W Emergency Linear Light80W Emergency Linear Light80W Emergency Linear Light

    80W Emergency Linear Light80W Emergency Linear Light

    80W Emergency Linear Light

    80W Emergency Linear Light
