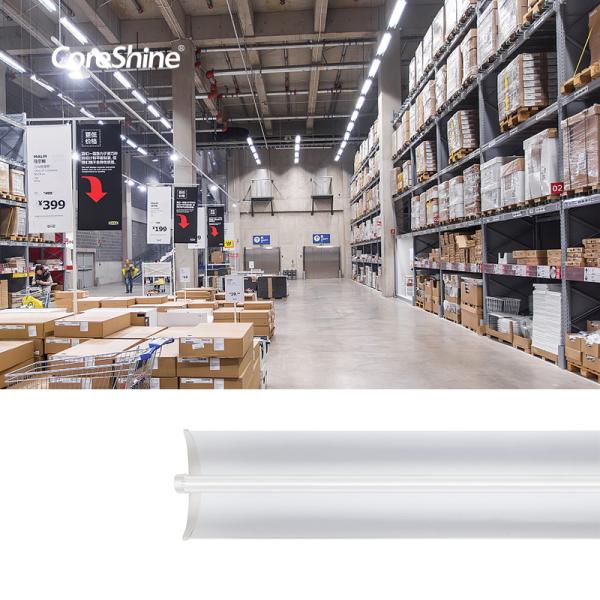

Emergency Linear Light with 3600mAh Emergency Battery | Warehouse
Lighting
Simple Installation Indirect Led Emergency Linear Light With Steel
Casing Driver
DESCRIPTION
Coreshine Linear Trunking System U-LINE series is not a simple light, it is an integrated lighting
solution. With its advantages of indirect diffuser,
energy-efficiency, low maintenance costs and convenient
installation, it is an ideal alternative to traditional linear
fluorescent lights in a variety of industrial and commercial
applications. Lighting System is a modular concept consisting of
trunking rails, luminaire inserts and accessories.With a color rendering index of Ra>80, color temperatures of
3000k, 4000k, 5000k and 6000k, and low UGR, it could meet
environmental requirements and comply with funding guidelines for
energy-efficient building and lighting solutions.
Emergency Lighting Models
Based on emergency supply, Coreshine's linear emergency light falls
into two models as follows:
- by external emergency supply only ( EL1/EL2)
- by internal emergency supply only ( emergency drive and built-in
battery supply )
Duration
Working time of CoreDhine emergency lighting depends on both
reduced lighting power and capacity of built-in battery. CoreShine
emergency lighting offers 3 hours working time.
Response Time
CoreShine emergency lighting can switch on within 1 second. The
very short respond time can prevent people panicking in the
darkness.
Remarks and Warnings
Emergency lighting models by emergency driver and built-in battery
| Emergency Power | 6W (CSSD-E1) | 12W (CSSD-E2) |
| luminous flux | 960lm | 1920lm |
| Battery | 1800mAh (CSSB1) | 3600mAh (CSSB2) |
| Duration | 3h | 3h |
DETAILS
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement
detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring
with 2.5mm²cable for power supply and 1.5mm² cable for dimming
control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one
serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency
supply in the event of a power failure to provide sufficient light
and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as
two independent emergency lighting circuits in the trunking.
135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction
on energy consumption and additional cost.
The LEDs keeps enough margin to make sure the luminaire efficiency
reach the best level.
Blank Cover
Install to trunking rail where there is no requirement of
luminaire.
At each of the blank cover there is a stopper to prevent the lights
from being emitted.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected
onto the floor, with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two
kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
| North American Standard | European Standard |
| Options | ·1200mm 30W 4000lm / 45W 6000lm / 60W 8000lm ·2400mm 60W 8000lm/ 90W 12000lm/ 120W 16000lm . Flicker/non-flicker driver optional . 0-10V driver optional | . 1500mm 35W 5000lm/ 50W 7000lm/ 70W 10000lm . 2400mm 70W 10000lm / 120W 17000lm . Flicker/non-flicker driver optional . Dali/1-10V/standard driver optional |
| Description | Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W Length : 2400MM Constant current LED driver Life time:50,000h 5 years warranty | Electrical Characteristics | Output Selectable Driver | 50W/70W Length : 1500MM Constant current LED driver Life time: 50,000h 5 year warranty |
| Properties | High efficiency >=88% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV | High efficiency >=90% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
SPECIFICATIONS
| Item: | Led Emergency Linear Light Trunking System |
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover |
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) |
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC |
| UGR: | <19 | CRI (Ra>): | 80/95 |
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K |
| PF: | >0.95 | THD: | <15% |
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch |
| Driver: | Coreshine/Rubycon | Color: | White Housing |
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White |
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... |
| Warranty: | 5 years | Lifespan: | 50000 hours |
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose |
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light |
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... |
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and
Industrial Projects... |
APPLICATIONS
- Warehouse / Factory / Workshop
- Hotel / Hospital / Supermarket
- Conference / Meeting room / Factory / Office
- Residential Home / Institution Building
- School / College / University
- Church / Theater / Sport Area
FAQ
Q:Do you have a factory ?
A:Yes,we are the top professional manufacture for this product.
Q:Do you have patent for this product?
A:Yes,we have patent in appearance design and function design.
Q:What is the maximum power in one line?
A:3500W
Q:Can it be DALI or 1-10V dimming?
A:Yes,it can be DALI dimming or 1-10V dimming or DIM switch.
