Linear Indirect Lighting with Comfortable Indirect Luminaire for
Supermarket
Stainless Steel Led Linear Indirect Reflection Lighting Up and Down
DESCRIPTION
Coreshine U-LINE is an INDIRECT LIGHTING DIFFUSER, PRO-LINEAR, LED LINEAR TRUNKING
SYSTEM MODULAR SUPERMARKET LIGHTS, multiple Beam Angle, Switch
built-in luminaire, easy and convenient for installation and
maintenance. it is an ideal alternative to traditional linear
fluorescent lights in a variety of industrial and commercial
applications.Lighting System is a modular concept consisting of trunking rails,
luminaire inserts and accessories.
1. High quality led aluminum profile help strip to dissipate heat,
make led enjoy a longer lifetime and less brightness decline
2. Nice led aluminum profile make led strip lighting more elegant
3. Prevent against dust, IP20 led aluminum profile, better price
4. LED aluminum profile's diffuse cover can help you get different
light effect
6. Different length according to your requirements
7. Led light bar with indirect lighting design, UGR<19, can
protect eyes
PRODUCT DETAILS
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement
detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring
with 2.5mm²cable for power supply and 1.5mm² cable for dimming
control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one
serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency
supply in the event of a power failure to provide sufficient light
and ensure safe evacuation in emergency situations.
· A wide variety of self-contained battery is available, as well as
two independent emergency lighting circuits in the trunking.
Installation
· Pendant Chain Installation
· Pendant Cord Installation
· Pendant Rod Installation
· Surface Mounted
. Mounting Clip
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and
feed-out
135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction
on energy consumption and additional cost. The LEDs keeps enough
margin to make sure the luminaire efficiency reach the best level.
Blank Cover
Install to trunking rail where there is no requirement of
luminaire.
At each of the blank cover, there is a stopper to prevent the
lights from being emitted.

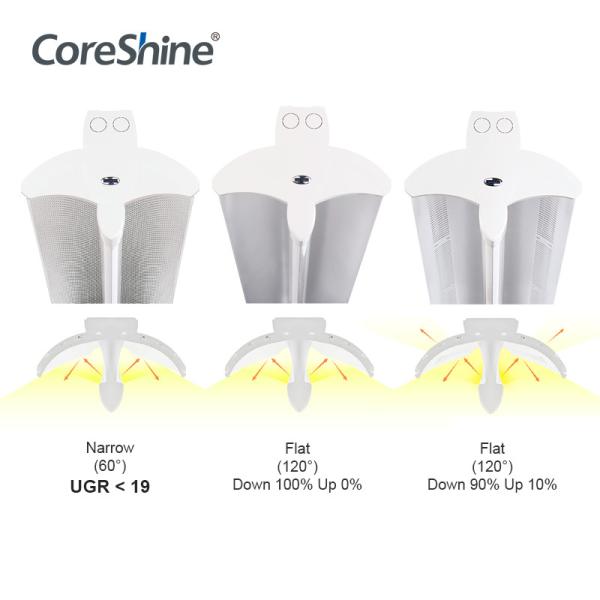

Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected
onto the floor, with or without uplighting is available
Length Options
Different length with various power is available
Europe standards and North American standards
| North American Standard | European Standard |
| Options | ·1200mm 30W 4000lm / 45W 6000lm / 60W 8000lm ·2400mm 60W 8000lm/ 90W 12000lm/ 120W 16000lm . Flicker/non-flicker driver optional . 0-10V driver optional | . 1500mm 35W 5000lm/ 50W 7000lm/ 70W 10000lm . 2400mm 70W 10000lm / 120W 17000lm . Flicker/non-flicker driver optional . Dali/1-10V/standard driver optional |
| Description | Electrical Characteristics | 0-10V Dimming Driver | 30W/45W/60W Length : 2400MM Constant current LED driver Life time:50,000h 5 years warranty | Electrical Characteristics | Output Selectable Driver | 50W/70W Length : 1500MM Constant current LED driver Life time: 50,000h 5 year warranty |
| Properties | High efficiency >=88% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV | High efficiency >=90% Over voltage protection with automatic restart Overload protection Short-circuit protection with automatic restart Surge voltage: 2.5KV |
SPECIFICATIONS
| Item: | Led Linear Light Trunking System |
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover |
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) |
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC |
| UGR: | <19 | CRI (Ra>): | 80/95 |
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K |
| PF: | >0.95 | THD: | <15% |
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch |
| Driver: | Coreshine/Rubycon | Color: | White Housing |
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White |
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... |
| Warranty: | 5 years | Lifespan: | 50000 hours |
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose |
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light |
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... |
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and
Industrial Projects... |
FEATURES
• Innovative Structure Design
• Operating temperature -22C to 65°C
• Linkable for continuous runs
APPLICATIONS
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
FAQ
Q1. Can I have a sample order?
A: Yes.
Q2. What's the lead time?
A: Sample 3-5 days, mass order 15-30 days.
Q3. MOQ?
A: 1pc available.
Q4. Payment way?
A: TT, Paypal, West Union, Pay online, Visa, Alibaba Pay later,
Trade assurance. L/C.
Q5. Logo customize?
A: Yes.
Q6. What's the guarantee?
A: 5 years warranty free after-sales service.
Q7: How long is our aging test?
A: At least 24 hours aging test on 100% complete Lighting Fixture,
48 hours aging test on the first batch of order.
Because lighting fixtures delivered without aging put customers at
risk of faulty LED products. Aging test process is treat seriously
in
our company.
OUR SERVICES
1. Your inquiry related to our products or prices will be replied
in 24hours.
2. Well-trained and experienced staffs to answer all your esquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to
design and put into product. If you have any questions about our led strip profile aluminum, Pls don't hesitate to contact
us!
