Low UGR Linear Indirect Lighting 4ft 30W 150lm/W | Supermarket
Lighting
Design Led Linear Indirect Reflective Lighting System in Commercial
PRODUCT DESCRIPTION

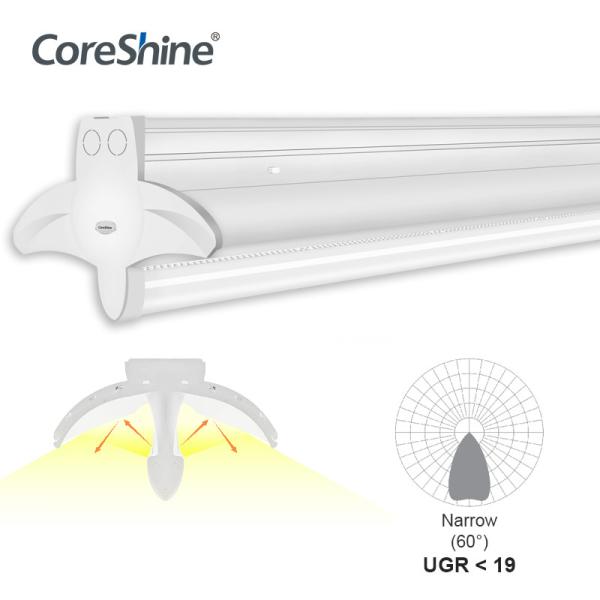

Coreshine Linear Trunking System U-LINE series is not a simple light, it is an indirect lighting solution.
With its advantages of indirect diffuser, energy-efficiency, low
maintenance costs and convenient installation, it is an ideal
alternative to traditional linear fluorescent lights in a variety
of industrial and commercial applications. Lighting System is a
modular concept consisting of trunking rails, luminaire inserts and
accessories.- Low UGR,<19,create comfortable light environment for school,shops & retail
industry
- Indirect light,only see light,not light source,good for eyes
- High lumens efficiency, 135lm/w~150lm/w
- 3-phase pre-selection via moving luminaire male connector to right
or left to installation in rail
- Working on trunking rail enable seamless continuous connection
- Maximum length in a series line about 100meter
- Option of dimming: DALI/1-10V/DIM-SWITCH
- Emergency function available
- Compatible with track spotlight, emergency exit sign, and motion
sensor
- Have two options of light:1)with 10% upward light 2)100% light
downward
PRODUCT DETAILS
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement
detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring
with 2.5mm²cable for power supply and 1.5mm² cable for dimming
control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one
serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency
supply in the event of a power failure to provide sufficient light
and ensure safe evacuation in emergency situations.
· A wide variety of self-contained battery is available, as well as
two independent emergency lighting circuits in the trunking.
Installation
· Pendant Chain Installation
· Pendant Cord Installation
· Pendant Rod Installation
· Surface Mounted
. Mounting Clip
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and
feed-out
135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction
on energy consumption and additional cost. The LEDs keeps enough
margin to make sure the luminaire efficiency reach the best level.
Blank Cover
Install to trunking rail where there is no requirement of
luminaire.
At each of the blank cover, there is a stopper to prevent the
lights from being emitted.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected
onto the floor, with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two
kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
Length | H x W x L(mm) | Power | Lumen | Code No. |
1200mm | 185x236x1205 | 30W | 4800lm | CUL-1230-X1X2-X3WH |
1200mm | 185x236x1205 | 40W | 6400lm | CUL-1240-X1X2-X3WH |
1200mm | 185x236x1205 | 60W | 9600lm | CUL-1260-X1X2-X3WH |
1500mm | 185x236x1503 | 35W | 5600lm | CUL-1535-X1X2-X3WH |
1500mm | 185x236x1503 | 50W | 8000lm | CUL-1550-X1X2-X3WH |
1500mm | 185x236x1503 | 70W | 11200lm | CUL-1570-X1X2-X3WH |
2400mm | 185x236x2406 | 60W | 9600lm | CUL-2460-X1X2-X3WH |
2400mm | 185x236x2406 | 80W | 12800lm | CUL-2480-X1X2-X3WH |
2400mm | 185x236x2406 | 120W | 19600lm | CUL-24120-X1X2-X3WH |
SPECIFICATIONS
| Item: | Led Linear Light Trunking System |
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover |
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) |
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC |
| UGR: | <19 | CRI (Ra>): | 80/95 |
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K |
| PF: | >0.95 | THD: | <15% |
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch |
| Driver: | Coreshine/Rubycon | Color: | White Housing |
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White |
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... |
| Warranty: | 5 years | Lifespan: | 50000 hours |
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose |
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light |
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... |
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and
Industrial Projects... |
APPLICATIONS
Warehouse / Factory / Workshop

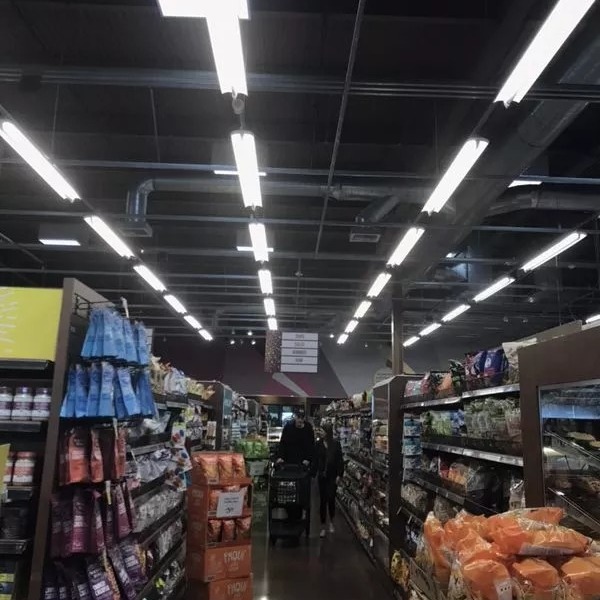

Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
