1200mm Linear Indirect Lighting with Reflector , Low UGR
Supermarket Lighting
Indoor Led Linear Indirect Lighting Trunking System 1500mm 70w
10000lm
DESCRIPTION

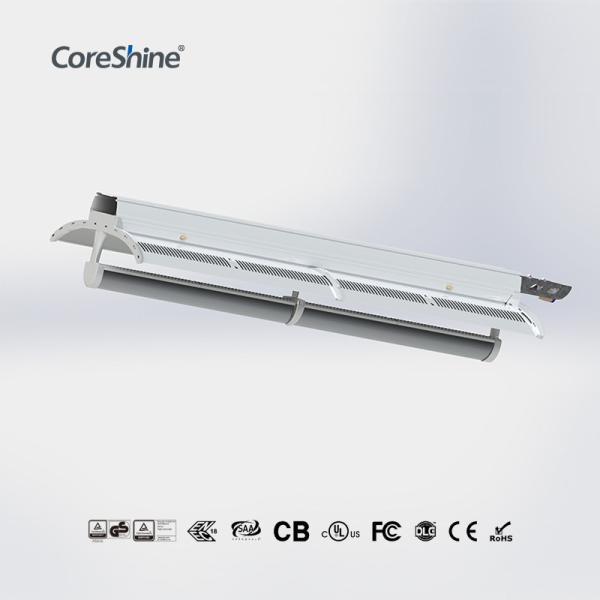

Coreshine Linear Trunking System U-LINE series is not a simple light, it is an integrated lighting
solution. With its advantages of indirect diffuser,
energy-efficiency, low maintenance costs and convenient
installation, it is an ideal alternative to traditional linear
fluorescent lights in a variety of industrial and commercial
applications. Lighting System is a modular concept consisting of
trunking rails, luminaire inserts and accessories.
- Upward luminescence 10%
- Indirect lighting & unique design
- Flexible solution
- UGR<19
DETAILS
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring
with 2.5mm²cable for power supply and 1.5mm² cable for dimming
control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one
serial row 220VAC power supply, up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency
supply in the event of a power failure to provide sufficient light
and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as
two independent emergency lighting circuits in the trunking.
Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and
feed-out
135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction
on energy consumption and additional cost. The LEDs keeps enough
margin to make sure the luminaire efficiency reach the best level.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected
onto the floor, with or without uplighting is available
Length Options
Different length with various power is available
Length | H x W x L(mm) | Power | Lumen | Code No. |
1200mm | 185x236x1205 | 30W | 4800lm | CUL-1230-X1X2-X3WH |
1200mm | 185x236x1205 | 40W | 6400lm | CUL-1240-X1X2-X3WH |
1200mm | 185x236x1205 | 60W | 9600lm | CUL-1260-X1X2-X3WH |
1500mm | 185x236x1503 | 35W | 5600lm | CUL-1535-X1X2-X3WH |
1500mm | 185x236x1503 | 50W | 8000lm | CUL-1550-X1X2-X3WH |
1500mm | 185x236x1503 | 70W | 11200lm | CUL-1570-X1X2-X3WH |
2400mm | 185x236x2406 | 60W | 9600lm | CUL-2460-X1X2-X3WH |
2400mm | 185x236x2406 | 80W | 12800lm | CUL-2480-X1X2-X3WH |
2400mm | 185x236x2406 | 120W | 19600lm | CUL-24120-X1X2-X3WH |
SPECIFICATIONS
| Item: | Led Linear Light Trunking System |
| Style: | U-Line | Material: | Aluminum Alloy + PMMA lens / PC cover |
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) |
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC |
| UGR: | <19 | CRI (Ra>): | 80/95 |
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K |
| PF: | >0.95 | THD: | <15% |
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch |
| Driver: | Coreshine/Rubycon | Color: | White Housing |
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White |
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... |
| Warranty: | 5 years | Lifespan: | 50000 hours |
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose |
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light |
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... |
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and
Industrial Projects... |
FEATURES
• Innovative Structure Design
• Operating temperature -22C to 65°C
• Linkable for continuous runs
APPLICATIONS
Suitable for Supermarket, Warehouse, Workshop, Office, Stores, Car
Parking, Schools, Classroom, Colleges, Hotels, Conference Rooms,
Factories, Commercial Purposes, Industrial Projects, Institution
Buildings, Universities, Hospitals, and other Architectural places
that need energy saving and high color rendering index lighting.
