    Led Linear Light Trunking Rail 1200mm 4 Foot 8 Wires Pre Wired

    Ask Lasest Price
    Brand Name : CoreShine
    Model Number : CFT-12X,-08WH
    Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000-25000 sets/month
    Delivery Time : 4-6 working days
    • Product Details
    • Company Profile

    Led Linear Light Trunking Rail 1200mm 4 Foot 8 Wires Pre Wired

    The trunking rail is simply a matter of replacing or adding lighting modulars, light sources or optics as required.

    • A pre-wired 3-phases & 2.5 mm power supply.
    • Phase conversion function with connector.
    • Allow Max 16A and 200 meters trunking length in 3-phases power supply system.
    • Endless combination with diversified modules.
    • Tool-free installation
    • Node connectors enable system to be connected in different directions.
    • Dimming, self-battery emergency or central emergency function as options.
    • Support surface ceiling mounting and suspension.
    Europe StandardsUSA Standards
    Length600mm, 1500mm, 3000mm600mm, 1200mm, 2400mm
    Wires

    5 wire: L1, L2, L3, N, PE

    8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency

    12 wire: L1, L2, L3, N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency Connector & Battery

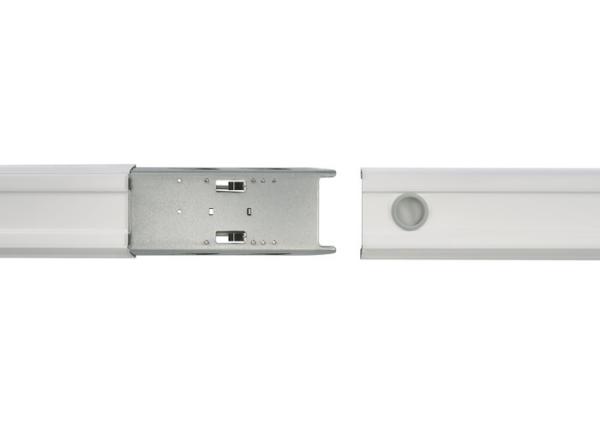

    Product Pictures​


    Led Linear Light Trunking Rail 1200mm 4 Foot 8 Wires Pre Wired


    Led Linear Light Trunking Rail 1200mm 4 Foot 8 Wires Pre Wired

    Our Advantages
    • 5 years warranty
    • Toolless installation
    • Brand Components
    • Heat radiating area 106cm²/w
    • Longer warranty, Less maintenance
    • Rigorous technical
    • Quick connector
    • Electrical safety design
    • Organized wiring
    • Modularity, integration structure
