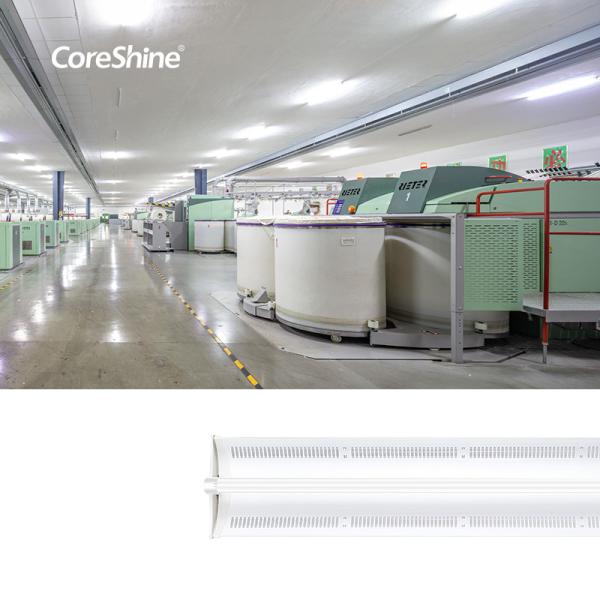

Waterproof Industrial Lighting for Warehouse | Linear High Bay
Light Line
Workshop Led Linear Indirect Warehouse Lighting 3000K 4000K 5000K
6000K
DESCRIPTION
Coreshine A continuous-row LED lighting system U-LINE could be created only by a trunking unit and a LED luminaire. It
appears as a consistent continuous-row system, without any visual
interruption or different reflectors. The luminaire and trunking
are perfectly matched to each other as array dimmable linkable LED
linear lights.- Elegant appearance
- Inside driver
- PCB LEDS
- Easy to install
- Suspend or surface mounted.
- Two Color for choose:White or Black
DETAILS
Dimming & Multi-Sensor System
· 3 different dimming system, DALI, 0-10V and DIMswitch
· It does not only have an integrated microwave sensor for movement
detection, but also a daylight sensor.
Trunking Rail
· Trunking rail as standard with 5, 8 or 12-core through-wiring
with 2.5mm²cable for power supply and 1.5mm² cable for dimming
control.
· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one
serial row 220VAC power supply,up to 100 meters.
Emergency Lighting Function
· It can work on normal mains and automatically switch to emergency
supply in the event of a power failure to provide sufficient light
and ensure safe evacuation in emergency situations.
· A wide variety of self contained battery is available, as well as
two independent emergency lighting circuits in the trunking.
Installation
· Chain Installation
· Cord Installation
· Rod Installation
· Surface Mounted
. Mounting Clip
Node Connector
· L, T and X Standard Module Node connectors
· Each node connector has diverse of electrical feed-in and
feed-out
135-150lm/W
The high lumens efficiency of 135~150 lm per Watt makes reduction
on energy consumption and additional cost. The LEDs keeps enough
margin to make sure the luminaire efficiency reach the best level.
Blank Cover
Install to trunking rail where there is no requirement of luminaire
.
At each of the blank cover there is a stopper to prevent the lights
from being emitted.
Uplighting
Directs 10% of the light upward to the ceiling and 90% reflected
onto the floor, with or without uplighting is available
Beam Angle
Unique reflective design, two different reflector face forms two
kinds of reflection angle
Length Options
Different length with various power is available
Europe standards and North American standards
Length | H x W x L(mm) | Power | Lumen | Code No. |
1200mm | 185x236x1205 | 30W | 4800lm | CUL-1230-X1X2-X3WH |
1200mm | 185x236x1205 | 40W | 6400lm | CUL-1240-X1X2-X3WH |
1200mm | 185x236x1205 | 60W | 9600lm | CUL-1260-X1X2-X3WH |
1500mm | 185x236x1503 | 35W | 5600lm | CUL-1535-X1X2-X3WH |
1500mm | 185x236x1503 | 50W | 8000lm | CUL-1550-X1X2-X3WH |
1500mm | 185x236x1503 | 70W | 11200lm | CUL-1570-X1X2-X3WH |
2400mm | 185x236x2406 | 60W | 9600lm | CUL-2460-X1X2-X3WH |
2400mm | 185x236x2406 | 80W | 12800lm | CUL-2480-X1X2-X3WH |
2400mm | 185x236x2406 | 120W | 19600lm | CUL-24120-X1X2-X3WH |
SPECIFICATIONS
| Item: | Led Linear Warehouse Lighting System |
| Style: | U-Line | Material: | Stainless Steel + PMMA lens / PC cover |
| Length: | 1200mm, 1500mm, 2400mm | Light Source: | Smd2835 (Everlight/Samsung) |
| Trunking: | 600mm, 1200mm, 1500mm, 2400mm, 3000mm | Input Voltage: | AC220-240VAC/100-277VAC |
| UGR: | <19 | CRI (Ra>): | 80/95 |
| Beam Angle: | 60°;120°; Asymmetric; Double Asymmetric | CCT: | 3000K/4000K/5000K/6000K |
| PF: | >0.95 | THD: | <15% |
| Lumen: | 4000lm-16000lm | Dimming: | DALI, 1-10V, DIMswitch |
| Driver: | Coreshine/Rubycon | Color: | White Housing |
| IP Rating: | IP20 | Light Color: | Warm White, White, Cold White |
| Efficiency: | 135lm/w-150lm/w | Power: | 35W,50W,65W,70W,100W,150W... |
| Warranty: | 5 years | Lifespan: | 50000 hours |
| Installation | Chain, Cord, Rod, Surface Mounted | Connector | L/T/X Node Connector can be choose |
| Function | Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light |
| Switch Type: | Motion Sensor Switch Optional | Shipping: | DHL/UPS/FEDEX/TNT... |
| Applications: | Office, Supermarket, Warehouse, Stores, Shops, Commercial and
Industrial Projects... |
APPLICATIONS
Warehouse / Factory / Workshop
Hotel / Hospital / Supermarket
Conference / Meeting room / Factory / Office
Residential Home / Institution Building
School / College / University
Church / Theater / Sport Area
FAQ
Q1: Are you a factory?
A: Yes, we are a professional manufacture focus on LED lighting
which widely used in Supermarkets, Warehouses, Stores, Museums,
etc.
Q2: How do you offer samples?
A: Samples for charge with shipping cost paid by the clients
Q3: What is your delivery time?
A: Sample order: 3-7 working days
Mass order: 12-18 working days after 30% deposit received
Q4: What is your warranty?
A: We offer 5 year warranty for the products.
Q5: Can your factory make the lights based on customers' design?
A: Yes, we offer OEM and ODM service, we have professional
engineers to design and produce according to your requirement.
Q6:Where is your factory? How can I get there?
A: Our factory is located in Guanlan, Shenzhen, Guandong Province,
about 1 hours by car from Baoan airport ; 2 hours by car from
Guangzhou. Welcome to visit our factory!
OUR SERVICES
1. Your inquiry related to our products or prices will be replied
in 24hours.
2. Well-trained and experienced staffs to answer all your esquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to
design and put into product.
If you have any questions about our led strip profile aluminum, Pls don't hesitate to contact
us!
ADVANTAGES
1. Quality is our Culture
2. Fast Delivery Time
3. Legal Business Assurance and Trust
4. Professional Customer-care Service
5. Customization is acceptable
6. Cooperate to Develop Your New Products
PICTURES
