Brand Name : | CoreShine |
Model Number : | CSD1S-X2-xx |
Certification : | UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 25000-30000 pcs/month |
Delivery Time : | 4-6 working days |

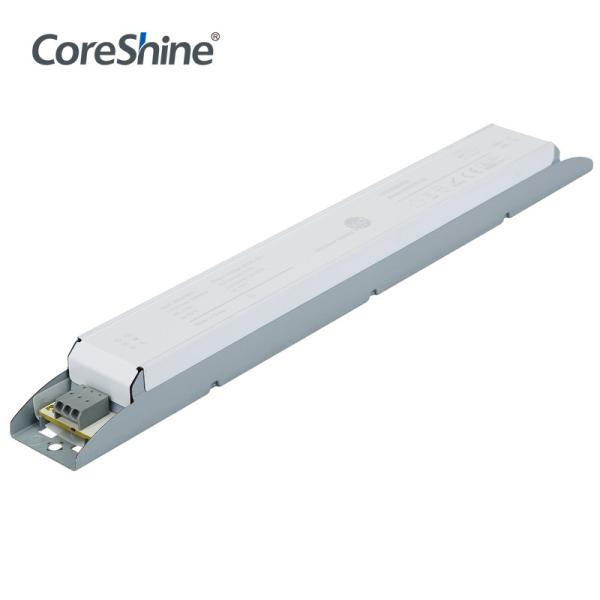

Coreshine LED Lighting Accessories
50W 70W 1-10V Dimming Driver for S-Line Led Linear Lighting System
Led Linear Lighting Dimming Driver
1-10V Dimming Driver
LED Lighting Accessories
Electronic Parameter
Constant current LED driver
Universal voltage input range
Steel casing, encapsulated
Lifetime: 50,000 h
5 year warranty
Europe Standard | USA Standard | |||||
Model NO. | CSD2S-35-10 | CSD2S-50-10 | CSD2S-70-10 | CSD1S-30-10 | CSD1S-40-10 | CSD1S-60-10 |
Power | 35 W | 50 W | 70 W | 30 W | 40 W | 60 W |
Input voltage | 220-240VAC | 100-277VAC | ||||
Output voltage | 0.23 A | 0.33 A | 0.47 A | 0.4 A | 0.5 A | 0.8 A |
Output current | 0.43A max | 0.62A max | 1.0A max | 0.8A max | 1.1A max | 1.6A max |
Inrush current | 5 A | |||||
Insulation Resistance | >100MΩ@500VDC | |||||
Efficiency | 91% | 87% | ||||
PF(at 230V,50Hz,full load) | 0.95 | |||||
THD | 15% | |||||
Max. Cable length | 300 mm | |||||
Dimming | 1-10V | |||||
Dimming Range | 10% - 100% | |||||
Ambient temp. | -25 - 60 ℃ | |||||
Max. Casing temp. | 75℃ | |||||
Storage temp. | -40 - 85 ℃ |
Related Driver | Description | Code No. |
Dimming Driver - Extra | 1-10V Dimming | CSD1S-X2-10 |
DALI Dimming | CSD2S-X2-DALI | |
DALI PS | CSD-PS | |
Emergency Driver | with 6W output | CSD-E1 |
with 12W output | CSD-E2 | |
Emergency Battery | 1800mAh Battery | CSB1 |
3600mAh Battery | CSB2 |
![]() |
